Spacecraft

Weighing just about 4 pounds (1.8 kilograms) on Earth but only 1.5 pounds (0.68 kilograms) on Mars, NASA’s Ingenuity Mars Helicopter is a small, autonomous rotorcraft designed to test – for the first time – powered, controlled flight in the thin Martian atmosphere. Ingenuity’s mission is a purely experimental flight test. If even only one test flight is achieved, it will provide NASA with a wealth of data and operational experience that can be applied to future aircraft designs for other worlds.

Because Ingenuity is a technology demonstration, there is no requirement to collect science data and there are no science instruments onboard. Instead, the helicopter carries a combination of custom-made and off-the-shelf components – many from the world of cell phone technology – including two cameras. These components are optimized for flight testing along with relaying engineering data and some imagery back to Earth.

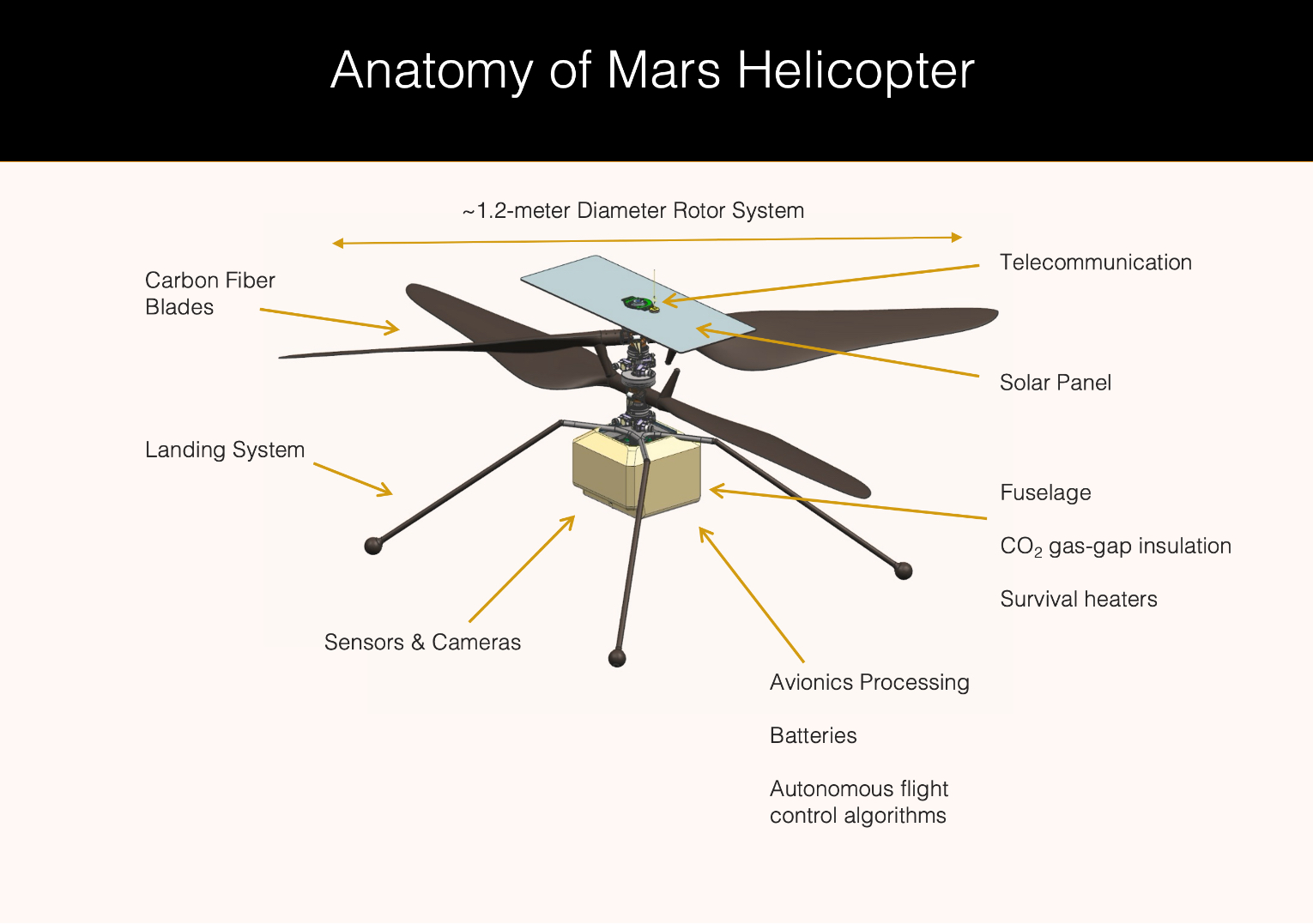

A chart showing the anatomy of Mars Helicopter Image credit: NASA/JPL-Caltech | View larger image

NASA’s Jet Propulsion Laboratory in Southern California oversaw the system architecture, design, and development. JPL also built the fuselage and integrated the full vehicle. AeroVironment of Simi Valley, California, built the rotor system, landing gear, and solar panel substrate. SolAero Technologies of Albuquerque, New Mexico, integrated the solar panel.

NASA Ames Research Center in California’s Silicon Valley and NASA’s Langley Research Center in Hampton, Virginia, provided rotorcraft expertise, computational fluid dynamics analysis, and optimization of the blade design.

Rotor System

Ingenuity’s rotor system features four carbon-fiber blades arranged into two 4-foot (1.2-meter) counter-rotating rotors that spin at about 2,400 rpm.

Fuselage

Ingenuity’s fuselage is just 5.4 inches by 7.7 inches by 6.4 inches (13.6 centimeters by 19.5 centimeters by 16.3 centimeters) – about the size of a tissue box. Engineers have packed this tiny space with computers, batteries, sensors, heaters, and telecommunications hardware. Four carbon composite landing legs, each about 1.26 feet (0.384 meters) long, give the helicopter 5.1 inches (0.13 meters) of clearance above a level surface.

Cameras

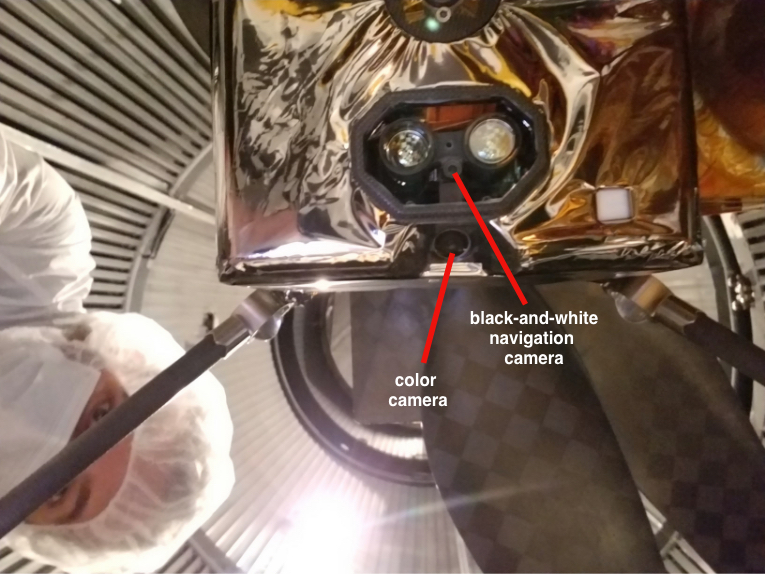

cameras on Mars Helicopter Image credit: NASA/JPL-Caltech | Full image and caption

  • One black-and-white 0.5 megapixel downward-facing navigation camera on the bottom of the fuselage.
  • One color 13 megapixel horizon-facing terrain camera on one of the bottom edges of the fuselage.

Flight Performance

  • Maximum anticipated altitude of Ingenuity during its flight tests is about 16 feet (5 meters).
  • Maximum time aloft during any flight test is expected to be no more than 90 seconds.
  • The helicopter’s downward-facing black-and-white camera will take images which are used for navigation (determining position and attitude) in real time during the flight. The horizon-facing color camera is expected to acquire a few color images during flight.

Supporting Hardware

To touchdown in Jezero Crater and perform successful flight operations there, Ingenuity will rely on the Perseverance rover and other major Mars 2020 spacecraft components.

Perseverance Rover
The size of a small SUV, Perseverance will explore Jezero Crater, collecting and caching the first samples from another planet for future return to Earth. Ingenuity will remain attached to Perseverance’s belly, encapsulated in a protective debris shield, until it is deployed for flight tests. During interplanetary cruise, landing, and early surface operations, Ingenuity will rely on the rover for electrical power and communications. Once Ingenuity is deployed on the surface, the rover will act as a communications relay between the helicopter and Earth, and also will document the flight tests with its onboard cameras.

In February 2021, NASA's Mars 2020 Perseverance rover and NASA's Ingenuity Mars Helicopter (shown in an artist's concept) will be the agency's two newest explorers on Mars. Both were named by students as part of an essay contest. Image credit: NASA/JPL-Caltech | Full image and caption

Mars Helicopter Delivery System

Mars Helicopter Delivery System Image credit: NASA/JPL-Caltech | View larger image

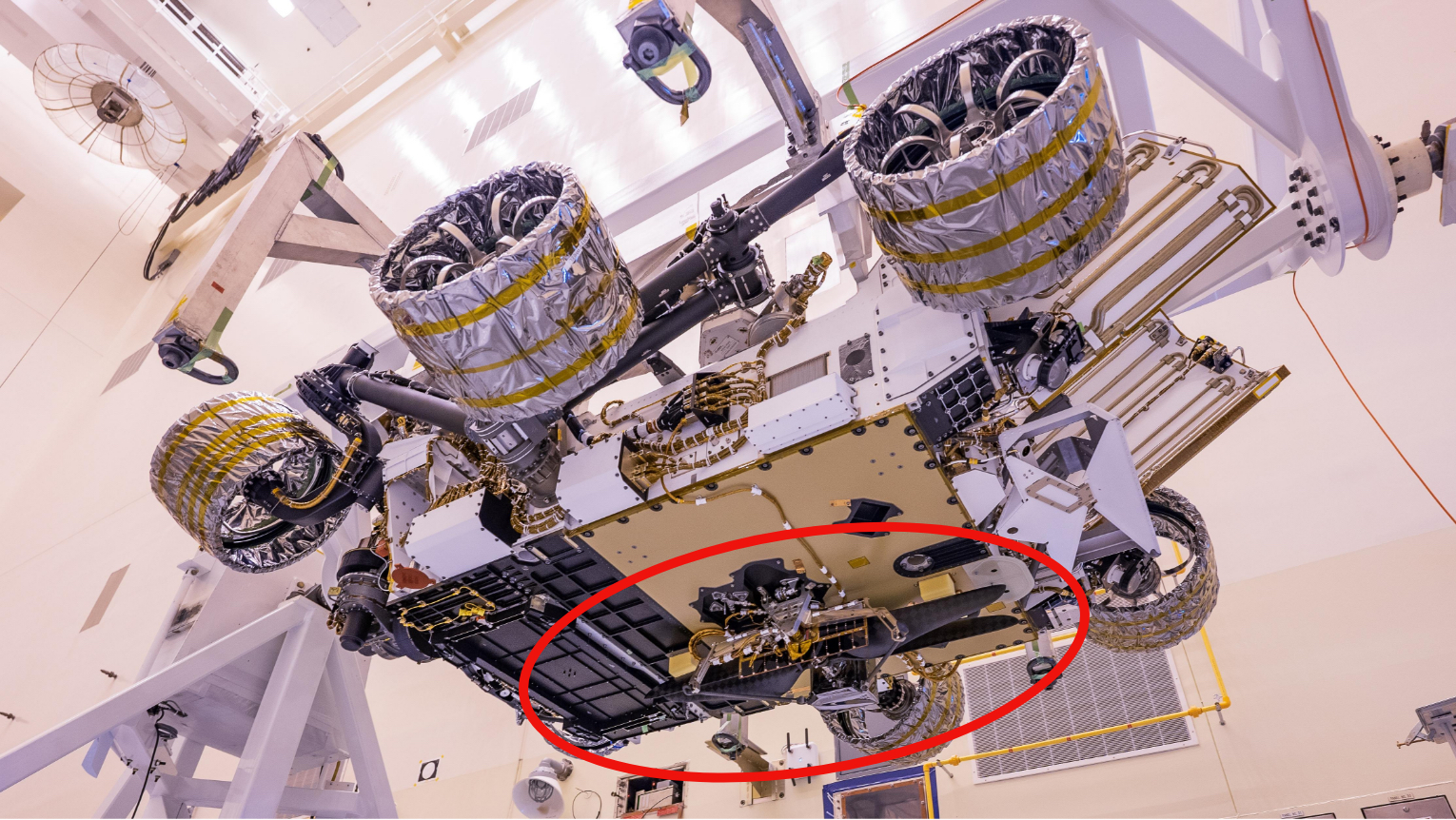

Designed collaboratively by Lockheed Martin Space in Denver, and the Mars 2020 and Mars Helicopter teams at NASA’s Jet Propulsion Laboratory, the Mars Helicopter Delivery System attaches Ingenuity to the belly of the rover during the journey to the Red Planet, landing, and early surface operation. A debris shield encapsulates and protects the helicopter and delivery system from rocks that could be kicked up during landing. The debris shield will remain in place until just days before Ingenuity is deployed to the surface. About 60 days after landing, the delivery system will deploy the helicopter, rotating and dropping it 5 inches (13 centimeters) or so (depending on surface variations) onto the Martian surface. After its job is complete (and Ingenuity is deployed), the delivery system will remain attached to the belly of Perseverance for the remainder of the rover’s mission.

Mars Helicopter Base Station

In February 2021, NASA's Mars 2020 Perseverance rover and NASA's Ingenuity Mars Helicopter (shown in an artist's concept) will be the agency's two newest explorers on Mars. Both were named by students as part of an essay contest. Image credit: NASA/JPL-Caltech | Full image and caption

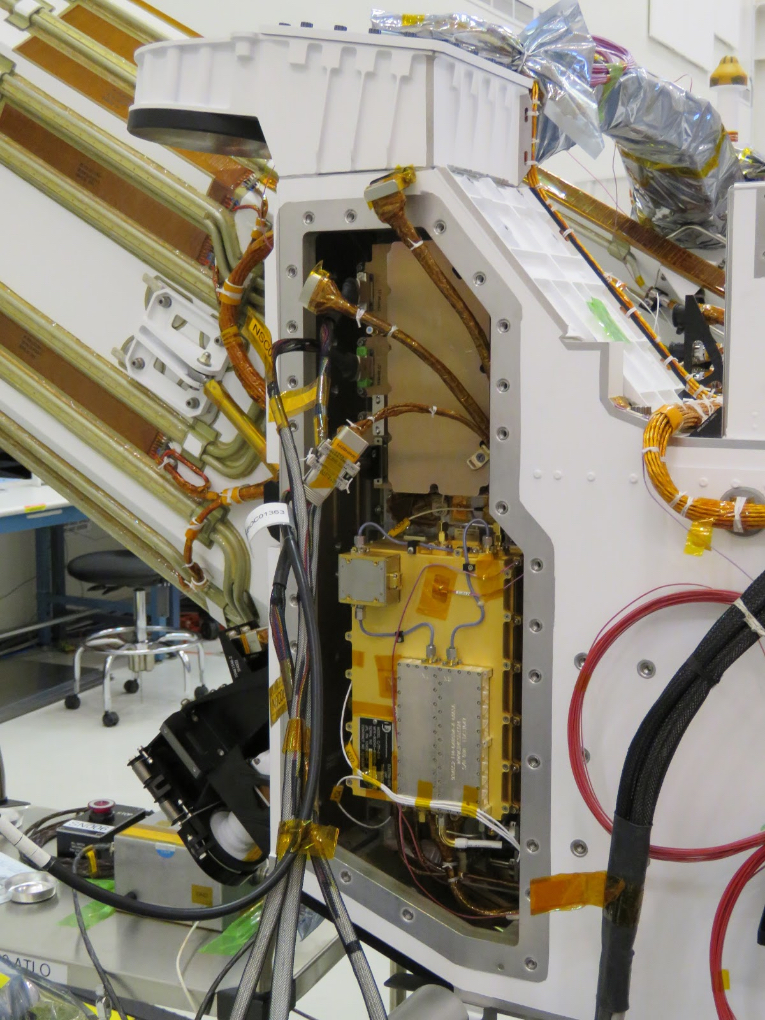

The Mars Helicopter Base Station, an electronics box installed in the Perseverance rover, carries the computers that monitor and regulate helicopter systems while it is attached to the rover and the communications gear that – after the helicopter’s deployment to the surface – stores and routes communications between Ingenuity, Perseverance, and Earth.

Mars 2020 Cruise Stage, Aeroshell, and Descent Stage

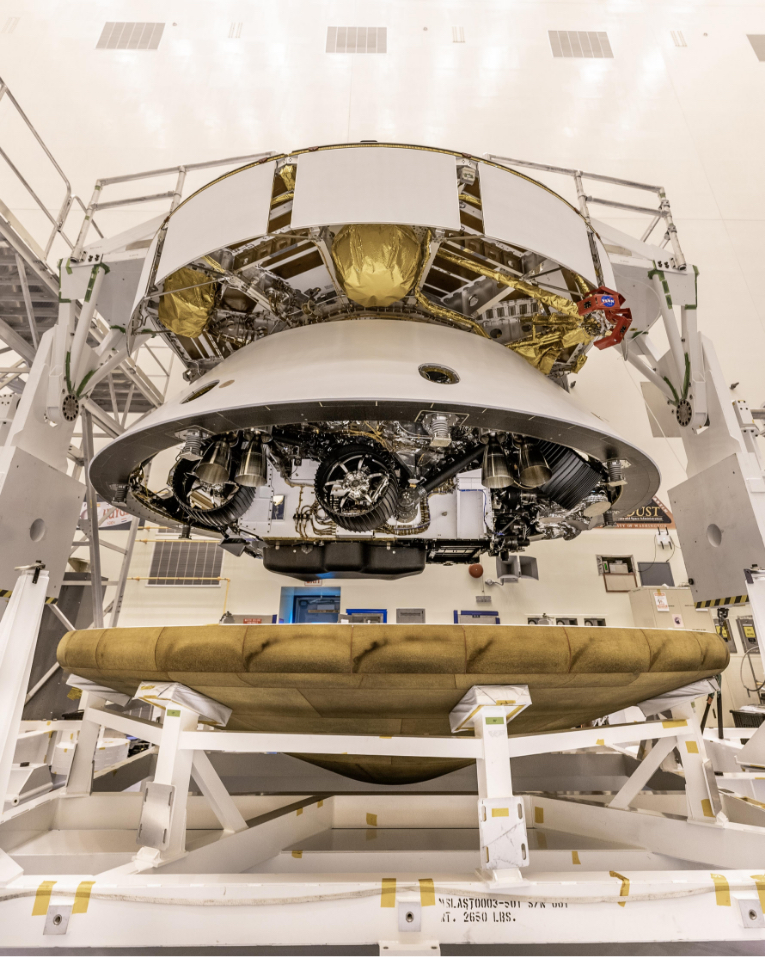

The Mars 2020 Perseverance rover mission's disk-shaped cruise stage sits atop the back shell, which contains the powered descent stage and Perseverance rover, in this image taken on May 28, 2020, at Kennedy Space Center in Florida. Image credit: NASA/JPL-Caltech | Full image and caption

Both the Perseverance rover and the Mars Helicopter depend upon the mission’s cruise stage, aeroshell, and descent stage to successfully navigate between Earth and Mars, and to safely land on the Red Planet.

Power

Ingenuity is powered by a six lithium-ion battery system that is recharged daily by a solar array located atop its rotor system. Solar cells in the array are optimized for the solar spectrum encountered at Mars, and the stored energy is used to operate heaters for the cold Martian nights as well as power the helicopter during flight operations. Power expended by the helicopter during an up-to-90-second flight is about 350 watts.

Telecommunications: How Ingenuity Talks to Earth

Communications between mission controllers back at JPL in Southern California and the Mars Helicopter are relayed by a string of assets. The antennas of NASA’s Deep Space Network send commands and other data from Earth directly to the Perseverance rover or to Mars orbiters that then relay those transmissions to Perseverance. Perseverance’s main computer relays the commands and data to the Helicopter Base Station on the rover, which then transmits them to the helicopter. Conversely, the basestation collects transmissions from the helicopter, stores them, and routes the data through the rover’s main computer on a similar path back to the orbiters or occasionally, straight back to Earth.

Ingenuity and the base station use a UHF telecom link (900 MHz) to communicate with each other. The system can relay data at up to 250 kilobytes per second over distances of up to 3,300 feet (1,000 meters). During flights, a one-way data stream will be sent in real time from the helicopter to the rover for storage and subsequent retransmission to Earth. After landing, the helicopter will re-transmit the inflight data stream and additional data from the flight.

For more information on how Perseverance communicates with Earth, read the Telecommunications section of the rover’s press kit.

Biological Cleanliness

The United States has obligations under the international 1967 Outer Space Treaty to explore space in a manner that avoids the harmful contamination of celestial bodies and also any adverse effects to Earth’s environment resulting from any return of extraterrestrial matter. To help meet these obligations, NASA’s Planetary Protection Office draws up cleanliness standards known as planetary protection requirements. These requirements call for missions to take precautions to limit the amount of Earth-sourced biological material carried by NASA robotic spacecraft that travel to Mars. Flight hardware for the Mars 2020 Perseverance mission and the Ingenuity Mars Helicopter have been designed and built to meet NASA planetary protection requirements. NASA’s primary strategy for limiting Earth-based contamination of Mars is to be sure that all hardware going to the planet is biologically clean.

To meet these cleanliness standards, engineers assembled the rover, the helicopter and other parts of the spacecraft in “clean rooms.” This type of room has powerful air filters that limit dust particles, and its surfaces and floors are frequently treated with strong cleaning solutions to kill and remove living microbes. Mission hardware is cleaned using techniques that have proven effective on many previous missions and are designed not to damage the spacecraft.

At launch, the entire payload going to Mars (the Perseverance rover, the Ingenuity Mars Helicopter, and the cruise stage, aeroshell, and descent stage) will carry fewer than 500,000 bacterial spores (dormant forms of bacteria). This is a tiny number as far as spores go and wouldn’t even cover a typical smartphone camera lens. Of this number, the parts of the Mars 2020 spacecraft intended to land on Mars – including the rover, helicopter, the parachute, and the descent stage – were mandated to have no more than 300,000 spores in total. The helicopter was allotted 33,000 spores and ended up with a count of 21,900.

Find more information in the Biological Cleanliness section of the Perseverance rover press kit.
