Force Field: A 'Pi in the Sky' Math Challenge

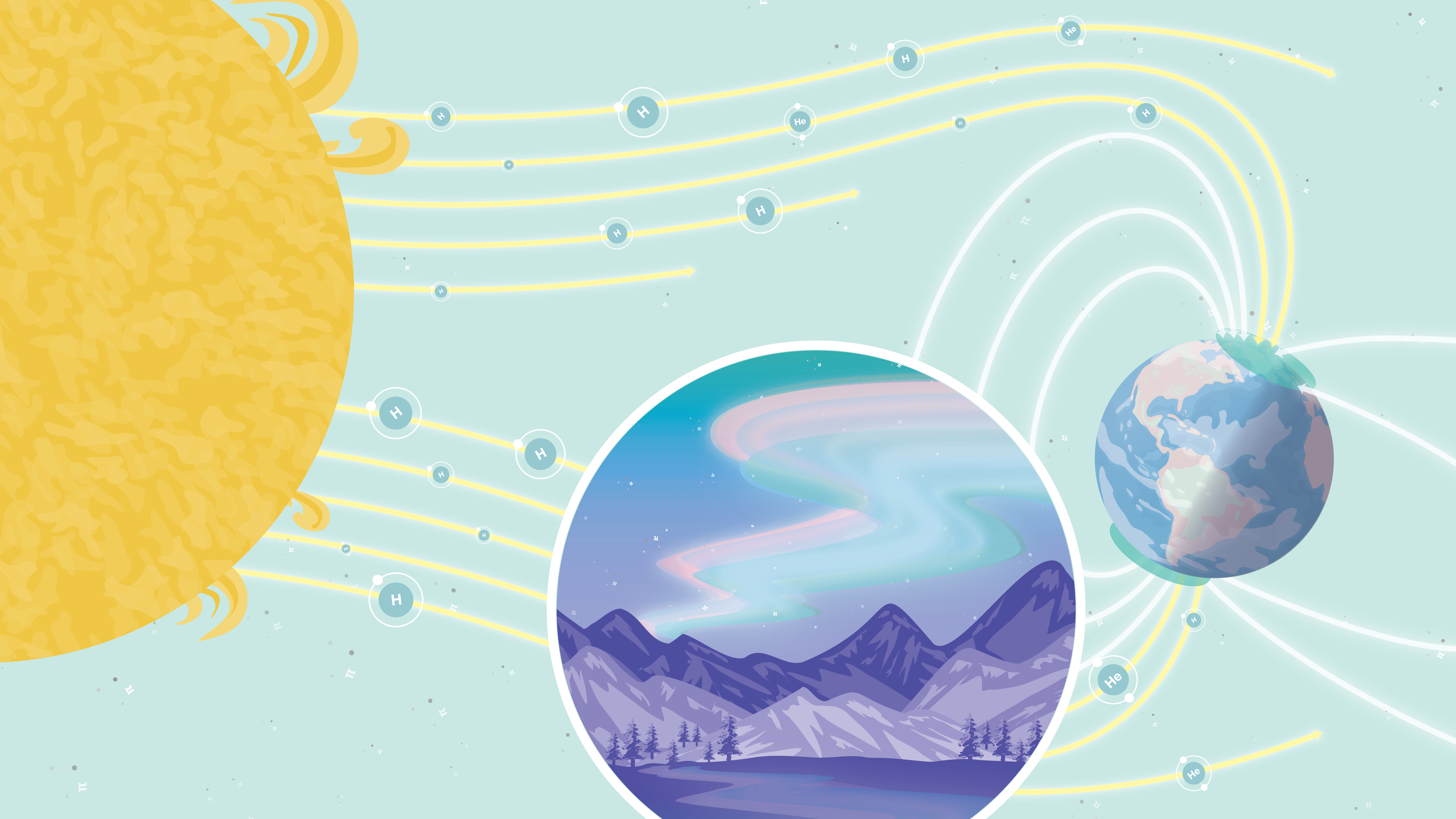

Illustration of a solar wind traveling from the Sun getting captured by Earth's magnetic field. Inset shows auroras over mountains.

Overview

The "Pi in the Sky" math challenge gives students a chance to take part in recent discoveries and upcoming celestial events, all while using math and pi just like NASA scientists and engineers. In this problem from the eighth set, students use the mathematical constant pi to determine the force observed by a hydrogen ion trapped in Earth's magnetic field.

Materials

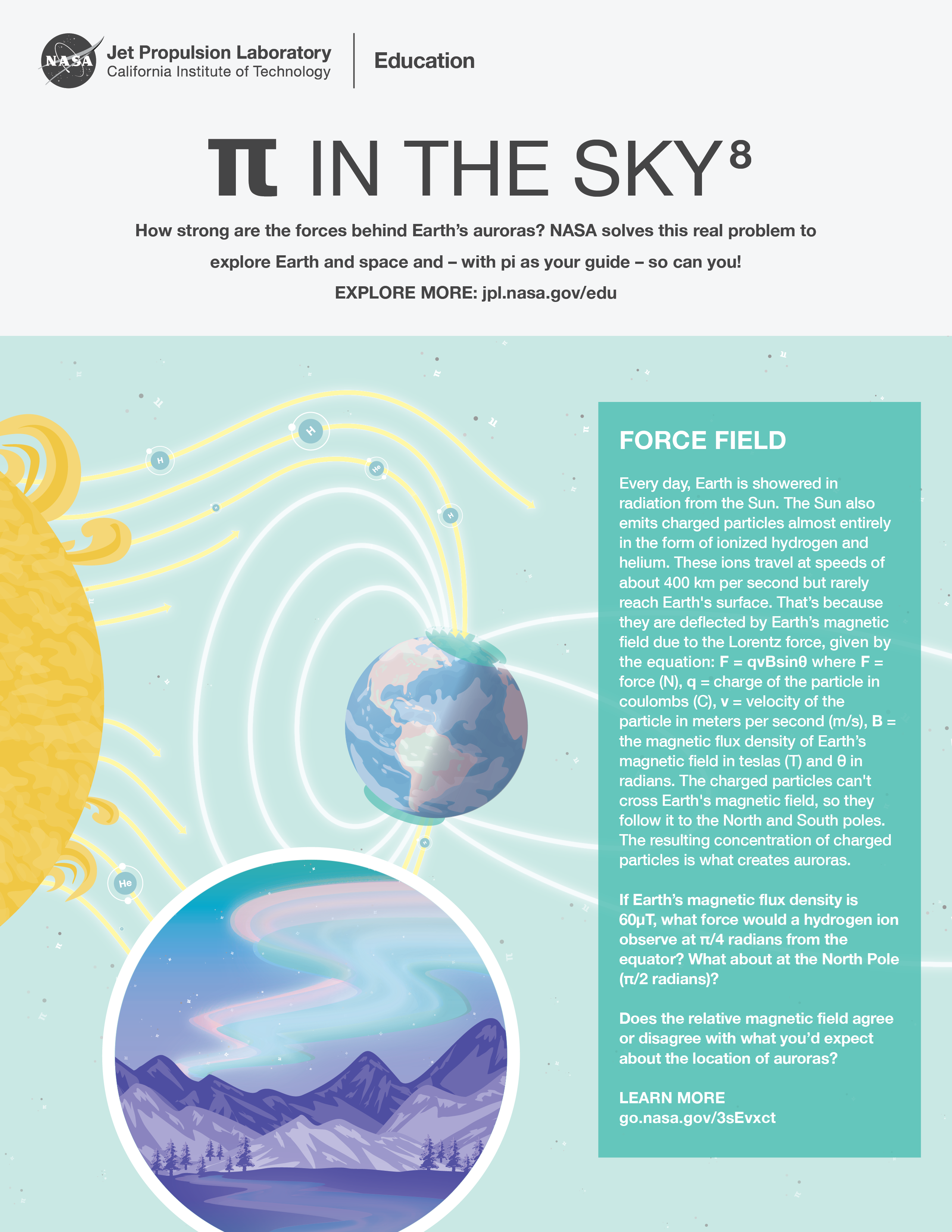

Pi in the Sky 8: Force Field worksheet – download PDF

Pi in the Sky 8: Force Field answer key – download PDF (also available as a text-only doc)

Background

A swirling fabric of glowing neon green, orange, and pink extends above Earth's limb. A partial silhouette of the ISS frames the right corner of the image.

Expedition 52 Flight Engineer Jack Fischer of NASA shared photos and time-lapse video of a glowing green aurora seen from his vantage point 250 miles up, aboard the International Space Station. This aurora photo was taken on June 26, 2017. Image credit: NASA | › Full image and caption

Earth’s magnetic field extends from within the planet and into space, and it serves as a protective shield, blocking charged particles from the Sun. Known as the solar wind, these charged particles of helium and hydrogen race from the Sun at hundreds of miles per second. When they reach Earth, they would bombard our planet and orbiting satellites were it not for the magnetic field. Instead, they are deflected, though some particles become trapped by the field and are directed and concentrated toward the poles, where they interact with the atmosphere, creating auroras. Knowing how Earth’s magnetic field shifts and how particles interact with the field can help keep satellites in safe orbits. In Force Field, students use pi to calculate how much force a hydrogen ion would experience at different points along Earth’s magnetic field.

Procedures

Every day, Earth is showered in radiation from the Sun. The Sun also emits charged particles almost entirely in the form of ionized hydrogen and helium. These ions travel at speeds of about 400 km per second but rarely reach Earth's surface. That’s because they are deflected by Earth’s magnetic field due to the Lorentz force, given by the equation:
F = qvBsinθ
where
F = force (N)
q = charge of the particle in coulombs (C)
v = velocity of the particle in meters per second (m/s)
B = the magnetic flux density of Earth’s magnetic field in teslas (T)
θ in radians.

The charged particles can't cross Earth's magnetic field, so they follow it to Earth's North and South poles. The resulting concentration of charged particles is what creates auroras.

If Earth’s magnetic flux density is 60µT, what force would a hydrogen ion observe at π/4 radians from the equator? What about at the North Pole (π/2 radians)?

Does the relative magnetic field agree or disagree with what you’d expect about the location of auroras?
