Update: Dec. 15, 2022 – NASA, the French space agency, and SpaceX are now targeting 3:46 a.m. PST (6:46 a.m. EST) on Friday, Dec.16, for the launch of the Surface Water and Ocean Topography (SWOT) satellite. Visit NASA's SWOT launch blog for the latest updates.

NASA is launching an Earth-orbiting mission that will map the planet’s surface water resources better than ever before. Scheduled to launch on Dec. 16 from Vandenberg Space Force Base in California, the Surface Water and Ocean Topography, or SWOT mission is the latest international collaboration designed to monitor and report on our home planet. By providing us with a highly detailed 3D view of rivers, lakes, and oceans, SWOT promises to improve our understanding of Earth’s water cycle and the role oceans play in climate change, as well as help us better respond to drought and flooding.

Read on to find out why we're hoping to learn more about Earth's surface water, get to know the science behind SWOT's unique design, and follow along with STEM teaching and learning resources.

Why It's Important

Observing Earth from space provides scientists with a global view that is important for understanding the whole climate system. In the case of SWOT, we will be able to monitor Earth’s surface water with unprecedented detail and accuracy. SWOT will provide scientists with measurements of water volume change and movement that will inform our understanding of fresh water availability, flood hazards, and the mechanisms of climate change.

Scientists and engineers provide an overview of the SWOT mission. Credit: NASA/JPL-Caltech | Watch on YouTube

Water Flow

Scientists use a variety of methods to track Earth’s water. These include stream and lake gauges and even measurements from space such as sea surface altimetry and gravitational measurements of aquifer volumes. Monitoring of river flow and lake volume is important because it can tell us how much freshwater is readily available and at what locations. River flow monitoring can also help us make inferences about the downstream environmental impact. But monitoring Earth’s surface water in great detail with enough frequency to track water movement has proven challenging. Until now, most monitoring of river flow and lake levels has relied on water-flow and water-level gauges placed across Earth, which requires that they be accessible and maintained. Not all streams and lakes have gauges and previous space-based altimetry and gravitational measurements, though useful for large bodies of water, have not been able to adequately track the constant movement of water through smaller rivers or lakes.

Here's why understanding Earth’s "water budget" is an important part of understanding our planet and planning for future water needs.

SWOT will be able to capture these measurements across the globe in 3D every 21 days. The mission will monitor how much water is flowing through hundreds of thousands of rivers wider than 330 feet (100 meters) and keep a close watch on the levels of more than a million lakes larger than 15 acres (6 hectares). Data from the mission will be used to create detailed maps of rivers, lakes, and reservoirs that will enable accurate monitoring to provide a view of freshwater resources that is not reliant on physical access. Meanwhile, SWOT’s volumetric measurements of rivers, lakes, and reservoirs will help hydrologists better track drought and flooding impacts in near-real-time.

Coastal Sea Level Rise

SWOT will measure our oceans with unprecedented accuracy, revealing details of ocean features as small as 9 miles (15 kilometers) across. SWOT will also monitor sea levels and tides. Though we have excellent global sea level data, we do not have detailed sea level measurements near coastlines. Coastal sea levels vary across the globe as a result of ocean currents, weather patterns, land changes, and other factors. Sea levels are rising faster than ever, and higher sea levels also mean that hurricane storm surges will reach farther inland than ever before, causing substantially more damage than the same category of hurricanes in the past. SWOT will be able to monitor coastal sea level variations and fill gaps in the observations we currently have from other sources.

What is sea level rise and what does it mean for our planet? | › View Transcript

Ocean Heat Sinks

Further contributing to our understanding of the role Earth’s oceans play in climate change, SWOT will explore how the ocean absorbs atmospheric heat and carbon, moderating global temperatures and climate change. Scientists understand ocean circulation on a large scale and know that ocean currents are driven by temperature and salinity differences. However, scientists do not currently have a good understanding of fine-scale ocean currents, where most of the ocean's motion-related energy is stored and lost. Circulation at these fine scales is thought to be responsible for transporting half of the heat and carbon from the upper ocean to deeper layers. Such downward ocean currents have helped to mitigate the decades-long rise in global air temperatures by absorbing and storing heat and carbon away from the atmosphere. Knowing more about this process is critical for understanding the mechanisms of global climate change.

JPL scientist Josh Willis uses a water balloon to show how Earth's oceans are absorbing most of the heat being trapped on our warming world. | › Related lesson

These fine-scale ocean currents also transport nutrients to marine life and circulate pollutants such as crude oil and debris. Understanding nutrient transport helps oceanographers assess ocean health and the productivity of fisheries. And tracking pollutants aids in natural hazard assessment, prediction, and response.

How It Works

A joint effort between NASA and the French space agency – with contributions from the Canadian and UK space agencies – SWOT will continue NASA’s decades-long record of monitoring sea surface height across the globe. But this mission will add a level of detail never before achieved.

SWOT will measure more than 90% of Earth’s surface water, scanning the planet between 78°N latitude and 78°S latitude within 1 centimeter of accuracy and retracing the same path every 21 days. Achieving this level of accuracy from a spacecraft height of 554 miles (891 kilometers) requires that the boom using radar to measure water elevation remain stable within 2 microns – or about 3% of the thickness of a human hair.

This visualization shows ocean surface currents around the world during the period from June 2005 through December 2007. With its new, high resolution wide-swath measurements, SWOT will be able to observe eddies and current features at greater resolution than previously possible. Credit: NASA Scientific Visualization Studio | Watch on YouTube

Prior to SWOT, spacecraft have used conventional nadir, or straight-down, altimetry to measure sea surface height. Conventional nadir altimetry sends a series of radar or laser pulses down to the surface and measures the time it takes for each signal to return to the spacecraft, thus revealing distances to surface features. To acquire more detailed information on surface water, SWOT will use an innovative instrument called the Ka-band Radar Interferometer, or KaRIn, to measure water height with exceptional accuracy. Ka-band is a portion of the microwave part of the electromagnetic spectrum. SWOT uses microwaves because they can penetrate clouds to return data about water surfaces.

SWOT will track Earth's surface water in incredible detail using an innovative instrument called the Ka-band Radar Interferometer, or KaRIn. Image credit: NASA/JPL-Caltech | + Expand image

The KaRIn instrument uses the principles of synthetic aperture radar combined with interferometry to measure sea surface height. A radar signal is emitted from the end of the 10-meter-wide boom on the spacecraft. The reflected signal is then received by antennas on both ends of the boom, capturing data from two 30-mile (50-kilometer) wide swaths on either side of the spacecraft. The received signals will be slightly out of sync, or phase, from one another because they will travel different distances to return to the receivers on either end of the boom. Knowing the phase difference, the distance between the antennas, and the radar wavelength allows us to calculate the distance to the surface.

Radar signals bounced off the water’s surface will be received by antennas on both ends of SWOT's 10-meter-wide boom. The received signals will be slightly out of phase because they will travel different distances as they return to the receivers. Scientists use this phase difference and the radar wavelength to calculate the distance to the surface. Image credit: NASA/JPL-Caltech | + Expand image

The observations acquired by the two antennas can be combined into what is known as an interferogram. An interferogram is a pattern of wave interference that can reveal more detail beyond the 1-centimeter resolution captured by the radar. To explain how it works, we'll recall a couple of concepts from high school physics. When out-of-phase waves from the two antennas are combined, constructive and destructive interference patterns result in some wave crests being higher and some wave troughs being lower than those of the original waves. The patterns that result from the combination of the waves reveal more detail with resolution better than the 1-centimeter wavelength of the original Ka-band radar waves because the interference occurs over a portion of a wavelength. An interferogram can be coupled with elevation data to reveal a 3D representation of the water’s surface.

The KaRIn instrument illuminates two parallel tracks of approximately 50 kilometres on either side of a nadir track from a traditional altimeter. The signals are received by two antennas 10 metres apart and are then processed to yield interferometry measurements. Image credit: NASA/JPL-Caltech | + Expand image

This highly accurate 3D view of Earth’s surface water is what makes SWOT so unique and will enable scientists to more closely monitor the dynamics of the water cycle. In addition to observing ocean currents and eddies that will inform our understanding of the ocean’s role in climate change, SWOT's use of interferometry will allow scientists to track volumetric changes in lakes and quantify river flooding, tasks that cannot yet be done on a wide scale in any other way.

This interferogram was captured by the air-based UAVSAR instrument of the magnitude 7.2 Baja California earthquake of April 4, 2010. The interferogram is overlaid atop a Google Earth image of the region. Image credit: NASA/JPL/USGS/Google | › Learn more

Follow Along

SWOT is scheduled to launch no earlier than Dec. 16, 2022, on a SpaceX Falcon 9 rocket from Vandenberg Space Force Base in California. Tune in to watch the launch on NASA TV.

After launch, the spacecraft will spend 6-months in a calibration and validation phase, during which it will make a full orbit of Earth every day at an altitude of 553 miles (857 kilometers). Upon completion of this phase, SWOT will increase its altitude to 554 miles (891 kilometers) and assume a 21-day repeat orbit for the remainder of its mission.

Visit the mission website to follow along as data are returned and explore the latest news, images, and updates as SWOT provides a new view on one of our planet's most important resources.

Teach It

The SWOT mission is the perfect opportunity to engage students in studying Earth’s water budget and water cycle. Explore these lessons and resources to get students excited about the STEM involved in studying Earth’s water and climate change from space.

Educator Resources

•
  Collection

  SWOT Mission Lessons for Educators

  Explore the science and engineering behind the SWOT mission with this collection of standards-aligned lessons all about water.

•
  Collection

  Climate Change Lessons for Educators

  Explore a collection of standards-aligned STEM lessons for students that get them investigating climate change along with NASA.

•
  Collection

  Teachable Moments in Climate Change

  Explore this collection of Teachable Moments articles to get a primer on the latest NASA Earth science missions, plus find related education resources you can deploy right away!

•
  Expert Talk

  Teaching Space With NASA – Monitoring Earth from Space

  In this educational talk, NASA experts discuss how we build spacecraft to study climate, then answer audience questions.

Student Activities

•
  Collection

  SWOT Mission Activities for Students

  Explore projects, videos, slideshows, and games for students all about the water cycle and sea level rise.

•
  Collection

  Climate Change Activities for Students

  Learn about climate change and its impacts with these projects, videos, and slideshows for students.

•
  Collection

  Earth Minute Video Series

  This series of animated white-board videos for students of all ages explains key concepts about Earth science, missions, and climate change.

Explore More

Activities for Kids

• Download: SWOT Launch Bingo
• Video: How Much Water is on Earth?
• Game: Go With the Flow – An Ocean Currents Game

Websites

• SWOT Mission Website
• NASA Climate Change
• NASA Earth Observatory
• NASA Climate Kids
• NASA Sea Level Change
• NASA Cambio Climático en Español

Facts & Figures

• NASA Climate Change: Evidence
• NASA Earth Science Missions

Videos

• Mission Makers - SWOT
• SWOT Mission - YouTube Playlist

Interactives

• Earth Now
• SWOT Swath Visualizer
• Sea Level Evaluation and Assessment Tool

Image Gallery

• NASA climate images, videos, and graphics
• Images of Change

Articles

• Climate articles from NASA
• Ask NASA Climate
• NASA People - Earth
• Water Mission to Gauge Alaskan Rivers on Front Lines of Climate Change

Podcast

• On a Mission

TAGS: K-12 Education, Teachers, Educators, Earth Science, Earth, Climate Change, Climate, Satellites, Teachable Moments

•

  ABOUT THE AUTHOR

  Ota Lutz, K-12 Education Group Manager, NASA-JPL Education Office

  Ota Lutz is the manager of the K-12 Education Group at NASA’s Jet Propulsion Laboratory. When she’s not writing new lessons or teaching, she’s probably cooking something delicious, volunteering in the community, or dreaming about where she will travel next.

Our home galaxy, the Milky Way, has a supermassive black hole at its center, but we’ve never actually seen it – until now. The Event Horizon Telescope, funded by the National Science Foundation, has released the first image of our galactic black hole, Sagittarius A* (pronounced “Sagittarius A-star” and abbreviated Sgr A*).

Read on to find out how the image was acquired and learn more about black holes and Sagittarius A*. Then, explore resources to engage learners in the exciting topic of black holes.

How Black Holes Work

A black hole is a location in space with a gravitational pull so strong that nothing, not even light, can escape it. A black hole’s outer edge, called its event horizon, defines the spherical boundary where the velocity needed to escape exceeds the speed of light. Matter and radiation fall in, but they can’t get out. Because not even light can escape, a black hole is literally black. Contrary to their name’s implication, black holes are not empty. In fact, a black hole contains a great amount of matter packed into a relatively small space. Black holes come in various sizes and can exist throughout space.

We can surmise a lot about the origin of black holes from their size. Scientists know how some types of black holes form, yet the formation of others is a mystery. There are three different types of black holes, categorized by their size: stellar-mass, intermediate-mass, and supermassive black holes.

Stellar-mass black holes are found throughout our Milky Way galaxy and have masses less than about 100 times that of our Sun. They comprise one of the possible endpoints of the lives of high-mass stars. Stars are fueled by the nuclear fusion of hydrogen, which forms helium and other elements deep in their interiors. The outflow of energy from the central regions of the star provides the pressure necessary to keep the star from collapsing under its own weight.

This illustration shows a binary system containing a stellar-mass black hole called IGR J17091-3624. The strong gravity of the black hole, on the left, is pulling gas away from a companion star on the right. This gas forms a disk of hot gas around the black hole, and the wind is driven off this disk. Image credit: NASA/CXC/M.Weiss | › Full image and caption

Once the fuel in the core of a high-mass star has completely burned out, the star collapses, sometimes producing a supernova explosion that releases an enormous amount of energy, detectable across the electromagnetic spectrum. If the star’s mass is more than about 25 times that of our Sun, a stellar-mass black hole can form.

Intermediate-mass black holes have masses between about 100 and 100,000 times that of our Sun. Until recently, the existence of intermediate-mass black holes had only been theorized. NASA’s Chandra X-ray Observatory has identified several intermediate-mass black hole candidates by observing X-rays emitted by the gas surrounding the black hole. The Laser Interferometer Gravitational Wave Observatory, or LIGO, funded by the National Science Foundation, detected the merger of two stellar-mass black holes with masses 65 and 85 times that of our Sun forming an intermediate-mass black hole of 142 solar masses. (Some of the mass was converted to energy and about nine solar masses were radiated away as gravitational waves.)

Supermassive black holes contain between a million and a billion times as much mass as a stellar-mass black hole. Scientists are uncertain how supermassive black holes form, but one theory is that they result from the combining of stellar-mass black holes.

This chart illustrates the relative masses of super-dense cosmic objects, ranging from white dwarfs to the supermassive black holes encased in the cores of most galaxies. | › Full image and caption

Our local galactic center’s black hole, Sagittarius A*, is a supermassive black hole with a mass of about four million suns, which is fairly small for a supermassive black hole. NASA’s Hubble Space Telescope and other telescopes have determined that many galaxies have supermassive black holes at their center.

This image shows the center of the Milky Way galaxy along with a closer view of Sagittarius A*. It was made by combining X-ray images from NASA's Chandra X-ray Observatory (blue) and infrared images from the agency's Hubble Space Telescope (red and yellow). The inset shows Sgr A* in X-rays only, covering a region half a light year wide. Image credit: X-ray: NASA/UMass/D.Wang et al., IR: NASA/STScI | › Full image and caption

Why They're Important

Black holes hold allure for everyone from young children to professional astronomers. For astronomers, in particular, learning about Sagittarius A* is important because it provides insights into the formation of our galaxy and black holes themselves.

Understanding the physics of black hole formation and growth, as well as their surrounding environments, gives us a window into the evolution of galaxies. Though Sagittarius A* is more than 26,000 light years (152 quadrillion miles) away from Earth, it is our closest supermassive black hole. Its formation and physical processes influence our galaxy as galactic matter continually crosses the event horizon, growing the black hole’s mass.

Studying black holes also helps us further understand how space and time interact. As one gets closer to a black hole, the flow of time slows down compared with the flow of time far from the black hole. In fact, according to Einstein’s theory of general relativity, the flow of time slows near any massive object. But it takes an incredibly massive object, such as a black hole, to make an appreciable difference in the flow of time. There's still much to learn about what happens to time and space inside a black hole, so the more we study them, the more we can learn.

How Scientists Imaged Sagittarius A*

Black holes, though invisible to the human eye, can be detected by observing their effects on nearby space and matter. As a result of their enormous mass, black holes have extremely high gravity, which pulls in surrounding material at rapid speeds, causing this material to become very hot and emit X-rays.

This video explains how Sagittarius A* appears to still have the remnants of a blowtorch-like jet dating back several thousand years. Credit: NASA | Watch on YouTube

X-ray-detecting telescopes such as NASA’s Chandra X-ray Observatory can image the material spiraling into a black hole, revealing the black hole’s location. NASA’s Hubble Space Telescope can measure the speed of the gas and stars orbiting a point in space that may be a black hole. Scientists use these measurements of speed to determine the mass of the black hole. Hubble and Chandra are also able to image the effects of gravitational lensing, or the bending of light that results from the gravitational pull of black holes or other high-mass objects such as galaxies.

The thin blue bull's-eye patterns in this Hubble Space Telescope image are called "Einstein rings." The blobs are giant elliptical galaxies roughly 2 to 4 billion light-years away. And the bull's-eye patterns are created as the light from galaxies twice as far away is distorted into circular shapes by the gravity of the giant elliptical galaxies. | › Full image and caption

To directly image the matter surrounding a black hole, thus revealing the silhouette of the black hole itself, scientists from around the world collaborated to create the Event Horizon Telescope. The Event Horizon Telescope harnesses the combined power of numerous telescopes around the world that can detect radio-wave emissions from the sky to create a virtual telescope the size of Earth.

Narrated by Caltech’s Katie Bouman, this video explains how she and her fellow teammates at the Event Horizon Telescope project managed to take a picture of Sagittarius A* (Sgr A*), a beastly black hole lying 27,000 light-years away at the heart of our Milky Way galaxy. Credit: Caltech | Watch on YouTube

In 2019, the team released the first image of a black hole's silhouette when they captured the glowing gasses surrounding the M87* galactic black hole nearly 53 million light-years (318 quintillion miles) away from Earth. The team then announced that one of their next endeavors was to image Sagittarius A*.

Captured by the Event Horizon Telescope in 2019, this image of the the glowing gasses surrounding the M87* black hole, was the first image ever captured of a black hole. Image credit: Event Horizon Telescope Collaboration | + Expand image

To make the newest observation, the Event Horizon Telescope focused its array of observing platforms on the center of the Milky Way. A telescope array is a group of telescopes arranged so that, as a set, they function similarly to one giant telescope. In addition to the telescopes used to acquire the M87* image, three additional radio telescopes joined the array to acquire the image of Sagittarius A*: the Greenland Telescope, the Kitt Peak 12-meter Telescope in Arizona, and the NOrthern Extended Millimeter Array, or NOEMA, in France.

This image of the center of our Milky Way galaxy representing an area roughly 400 light years across, has been translated into sound. Listen for the different instruments representing the data captured by the Chandra X-ray Observatory, Hubble Space Telescope, and Spitzer Space Telescope. The Hubble data outline energetic regions where stars are being born, while Spitzer's data captures glowing clouds of dust containing complex structures. X-rays from Chandra reveal gas heated to millions of degrees from stellar explosions and outflows from Sagittarius A*. Credit: Chandra X-ray Observatory | Watch on YouTube

The distance from the center of Sagittarius A* to its event horizon, a measurement known as the Schwarzschild radius, is enormous at seven million miles (12,000,000 kilometers or 0.08 astronomical units). But its apparent size when viewed from Earth is tiny because it is so far away. The apparent Schwarzschild radius for Sagittarius A* is 10 microarcseconds, about the angular size of a large blueberry on the Moon.

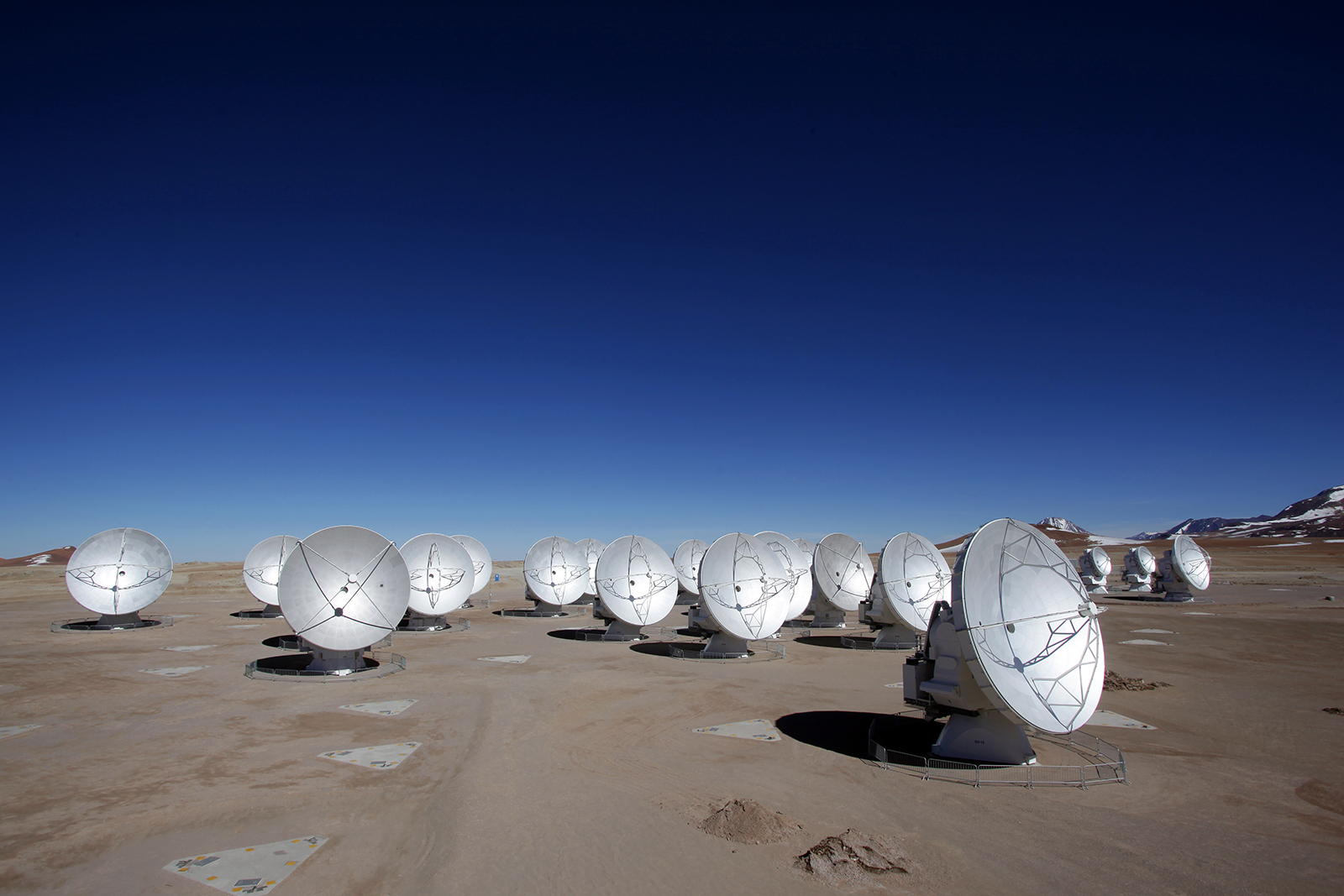

Acquiring a good image of a large object that appears tiny when viewed from Earth requires a telescope with extraordinarily fine resolution, or the ability to detect the smallest possible details in an image. The better the resolution, the better the image and the more detail the image will show. Even the best individual telescopes or array of telescopes at one location do not have a good enough resolution to image Sagittarius A*.

This image captured by NASA's Hubble Space Telescope shows the star-studded center of the Milky Way towards the constellation of Sagittarius. Even though you can't see our galaxy's central black hole directly, you might be able to pinpoint its location based on what you've learned about black holes thusfar. Image credit: NASA, ESA, and G. Brammer | › Full image and caption

The addition of the 12-meter Greenland Telescope, though a relatively small instrument, widened the diameter, or aperture, of the Event Horizon Telescope to nearly the diameter of Earth. And NOEMA – itself an array of twelve 15-meter antennas with maximum separation of 2,500 feet (760 meters) – helped further increase the Event Horizon Telescope’s light-gathering capacity.

Altogether, when combined into the mighty Event Horizon Telescope, the virtual array obtained an image of Sagittarius A* spanning about 50 microarcseconds, or about 1/13th of a billionth the span of the night sky.

Sagittarius A* is more than 26,000 light years (152 quadrillion miles) away from Earth and has the mass of 4 million suns. Image credit: Event Horizon Telescope | › Full image and caption

While the Event Horizon Telescope was busy capturing the stunning radio image of Sagittarius A*, an additional worldwide contingent of astronomical observatories was also focused on the black hole and the region surrounding it. The aim of the team, known as the Event Horizon Telescope Multiwavelength Science Working Group, was to observe the black hole in other parts of the electromagnetic spectrum beyond radio. As part of the effort, X-ray data were collected by NASA’s Chandra X-ray Observatory, Nuclear Spectroscopic Telescope (NuSTAR), and Neil Gehrels Swift Observatory, additional radio data were collected by the East Asian Very Long-Baseline Interferometer (VLBI) network and the Global 3 millimeter VLBI array, and infrared data were collected by the European Southern Observatory’s Very Large Telescope.

The data from these multiple platforms will allow scientists to continue building their understanding of the behavior of Sagittarius A* and to refine their models of black holes in general. The data collected from these multiwavelength observations are crucial to the study of black holes, such as the Chandra data revealing how quickly material falls in toward the disk of hot gas orbiting the black hole’s event horizon. Data such as these will hopefully help scientists better understand black hole accretion, or the process by which black holes grow.

Teach It

Check out these resources to bring the real-life STEM of black holes into your teaching, plus learn about opportunities to involve students in real astronomy research.

•
  Educator Guide: Dropping In With Gravitational Waves

  Students develop a model to represent the collision of two black holes, the gravitational waves that result and the waves' propagation through spacetime.

  Subject Science

  Grades 6-8

  Time 30-60 mins

•
  Teachable Moments: How Scientists Captured the First Image of a Black Hole

  Find out how scientists created a virtual telescope as large as Earth itself to capture the first image of a black hole's silhouette.

•
  Teachable Moments: Gravitational Waves Detected for the First Time

  Find out how researchers proved part of Albert Einstein’s Theory of General Relativity, then create a model of the Nobel Prize-winning experiment in the classroom.

Explore More

Articles

•
  Teachable Moments: Learn About the Universe With the James Webb Space Telescope

  Get a look into the science and engineering behind the largest and most powerful space telescope ever built while exploring ways to engage learners in the mission.

•
  JPL Education ‘Teachable Moment’ Inspires Winning Science Fair Project

  A “teachable moment” turned into a science fair win for an eighth-grader in Ontario, Canada, who based his project on a classroom activity from NASA’s Jet Propulsion Laboratory.

Educator Guides

•
  How Do We See Dark Matter?

  Students will make observations of two containers and identify differences in content, justify their claims and make comparisons to dark matter observations.

  Subject Science

  Grades 6-12

  Time < 30 mins

Student Activities

•
  Black Holes: By the Numbers

  What are black holes and how do they form?

  Subject Science

  Grades 4-12

  Time Less than 30 mins

Check out these related resources for students from NASA’s Space Place

• What is a Black Hole?

Across the NASA-Verse

• Educator Guide: Black Hole Math
• NASA/IPAC TeacherArchive Research Program
• Student Resources: Chandra
• Articles: Hubble - Black Holes
• Audio: Sonification of the Milky Way galactic center
• Audio: Sonification of the M87 black hole
• Interactive: Sagittarius A*
• Videos: Hubble - Black Holes
• Website: NASA Science - Black Holes
• Download: A Galaxy Full of Black Holes Presentation
• Expert Talk: Imaging a Black Hole Lecture
• Website: NASA - Black Holes
• Article: Black Hole Image Makes History
• Graphic: Anatomy of a Black Hole

This Teachable Moment was created in partnership with NASA’s Universe of Learning. Universe of Learning materials are based upon work supported by NASA under award number NNX16AC65A to the Space Telescope Science Institute, working in partnership with Caltech/IPAC, Center for Astrophysics | Harvard & Smithsonian, and the Jet Propulsion Laboratory.

TAGS: Black hole, Milky Way, galaxy, universe, stars, teachers, educators, lessons, Teachable Moments, K-12, science

•

  ABOUT THE AUTHOR

  Ota Lutz, K-12 Education Group Manager, NASA-JPL Education Office

  Ota Lutz is the manager of the K-12 Education Group at NASA’s Jet Propulsion Laboratory. When she’s not writing new lessons or teaching, she’s probably cooking something delicious, volunteering in the community, or dreaming about where she will travel next.

After six years investigating the effects of warming oceans on Greenland's ice sheet, the Oceans Melting Greenland, or OMG, mission has concluded. This airborne and seaborne mission studied how our oceans are warming and determined that ocean water is melting Greenland’s glaciers as much as warm air is melting them from above.

Read on to learn more about how OMG accomplished its goals and the implications of what we learned. Then, explore educational resources to engage students in the science of this eye-opening mission.

Why It's Important

Global sea level rise is one of the major environmental challenges of the 21st century. As oceans rise, water encroaches on land, affecting populations that live along shorelines. Around the world – including U.S. regions along the Gulf of Mexico and Eastern Seaboard and in Alaska – residents are feeling the impact of rising seas. Additionally, freshwater supplies are being threatened by encroaching saltwater from rising seas.

Sea level rise is mostly caused by melting land ice (primarily glaciers), which adds water to the ocean, as well as thermal expansion, the increase in volume that occurs when water heats up. Both ice melt and thermal expansion result from rising global average temperatures on land and in the sea – one facet of climate change.

This short video explains why Greenland's ice sheets are melting and what it means for our planet. Credit: NASA/JPL-Caltech | Watch more from the Earth Minute series

Greenland’s melting glaciers contribute more freshwater to sea level rise than any other source, which is why the OMG mission set out to better understand the mechanisms behind this melting.

How We Did It

The OMG mission used a variety of instruments onboard airplanes and ships to map the ocean floor, measure the behemoth Greenland glaciers, and track nearby water temperature patterns.

Join JPL scientist Josh Willis as he and the NASA Oceans Melting Greenland (OMG) team work to understand the role that ocean water plays in melting Greenland’s glaciers. Credit: NASA/JPL-Caltech | Watch on YouTube

This animation shows how the OMG mission created a map of the ocean floor, known as a bathymetric map, to determine the geometry around Greenland's glaciers. Image credit: NASA/JPL-Caltech | + Expand image

This animation shows how the OMG mission used radar to measure changes in the thickness and retreat of Greenland's glaciers as well as probes to measure ocean temperature and salinity. Credit: NASA/JPL-Caltech | + Expand image

Early on, the mission team created a map of the ocean floor, known as a bathymetric map, by combining multibeam sonar surveys taken from ships and gravity measurements taken from airplanes. Interactions among glaciers and warming seas are highly dependent on the geometry of the ocean floor. For example, continental shelf troughs carved by glaciers allow pathways for water to interact with glacial ice. So understanding Greenland's local bathymetry was crucial to OMG's mission.

To locate the edges of Greenland's glaciers and measure their heights, the mission used a radar instrument known as the Glacier and Ice Surface Topography Interferometer. Every spring during the six-year OMG mission, the radar was deployed on NASA’s Gulfstream III airplane that flew numerous paths over Greenland’s more than 220 glaciers. Data from the instrument allowed scientists to determine how the thickness and area of the glaciers are changing over time.

Finally, to measure ocean temperature and salinity patterns, scientists deployed numerous cylindrical probes. These probes dropped from an airplane and fell through the water, taking measurements from the surface all the way to the ocean floor. Each probe relayed its information back to computers onboard the plane where ocean temperatures and salinity were mapped. Then, scientists took this data back to their laboratories and analyzed it for trends, determining temperature variations and circulation patterns.

What We Discovered

Prior to the OMG mission, scientists knew that warming air melted glaciers from above, like an ice cube on a hot day. However, glaciers also flow toward the ocean and break off into icebergs in a process called calving. Scientists had the suspicion that warmer ocean waters were melting the glaciers from below, causing them to break off more icebergs and add to rising seas. It wasn’t until they acquired the data from OMG, that they discovered the grim truth: Glaciers are melting from above and below, and warming oceans are having a significant effect on glacial melt.

This narrated animation shows warm ocean water is melting glaciers from below, causing their edges to break off in a process called calving. Credit: NASA | Watch on YouTube

What this means for our Earth's climate is that as we continue burning fossil fuels and contributing to greenhouse gas accumulation, the oceans, which store more than 90% of the heat that is trapped by greenhouse gases, will continue to warm, causing glaciers to melt faster than ever. As warming ocean water moves against glaciers, it eats away at their base, causing the ice above to break off. In other words, calving rates increase and sea level rises even faster.

Our oceans control our climate and affect our everyday lives, whether or not we live near them. With the pace of the melt increasing, our shorelines and nearby communities will be in trouble sooner than previously expected. And it’s not just the beaches that will be affected. If Greenland’s glaciers all melt, global sea levels will rise by over 24 feet (7.4 meters), bringing dramatic change to the landscapes of major cities around the world.

› Read more about OMG’s findings and how scientists are continuing their research through ongoing initiatives and projects.

Teach It

Check out these resources to bring the real-life STEM behind the mission into your teaching. With lessons for educators and student projects, engage students in learning about the OMG mission and NASA climate science.

Educator Guides

•
  Melting Ice Experiment

  Students make predictions and observations about how ice will melt in different conditions then compare their predictions to results as they make connections to melting glaciers.

  Subject Science

  Grades 2-12

  Time 30-60 mins

•
  What's Causing Sea-Level Rise? Land Ice Vs. Sea Ice

  Students learn the difference between land ice and sea ice and make a model to see how the melting of each impacts global sea level.

  Subject Science

  Grades 2-8

  Time 30-60 mins

•
  Lessons in Sea-Level Rise

  What is sea-level rise and how does it affect us? This "Teachable Moment" looks at the science behind sea-level rise and offers lessons and tools for teaching students about this important climate topic.

  Subject Science

  Grades 5-12

  Time 30-60 mins

•
  Collection: Climate Change Lessons for Educators

  Explore a collection of standards-aligned STEM lessons for students that get them investigating climate change along with NASA.

Student Projects

•
  How Melting Ice Causes Sea Level Rise

  Learn the difference between land ice and sea ice, then do an experiment to see how the melting of each contributes to global sea level rise.

  Subject Science

  Grades 2-8

  Time 30-60 mins

•
  Collection: Climate Change Activities for Students

  Learn about climate change and its impacts with these projects, videos, and slideshows for students.

Articles

•

  NASA Greenland Mission Completes Six Years of Mapping Unknown Terrain

  To learn how ocean water is melting glaciers, NASA’s Oceans Melting Greenland mission extensively surveyed the coastline of the world’s largest island.

Explore More

Websites

• NASA Climate Change
• NASA Earth Observatory
• NASA Climate Kids
• OMG Mission Website
• NASA Sea Level Change
• NASA Cambio Climático en Español

Facts & Figures

• NASA Climate Change: Evidence
• NASA Earth Science Missions

Videos

• Earth Minute Video Series
• Teaching Space - Monitoring Earth From Space

Interactives

• Earth Now

Image Gallery

• NASA climate images, videos, and graphics
• Images of Change

Articles

• Climate articles from NASA
• Ask NASA Climate
• NASA People - Josh Willis, Principal Investigator, Oceans Melting Greenland
• NASA People - Earth

Podcast

• On a Mission

TAGS: Teachable Moment, Climate, Earth Science, Glaciers, Greenland, Ice, Sea Level Rise, Teachers, Educators, Parents, Lessons, Missions, Earth, Climate TM

•

  ABOUT THE AUTHOR

  Ota Lutz, K-12 Education Group Manager, NASA-JPL Education Office

  Ota Lutz is the manager of the K-12 Education Group at NASA’s Jet Propulsion Laboratory. When she’s not writing new lessons or teaching, she’s probably cooking something delicious, volunteering in the community, or dreaming about where she will travel next.

How It Works

With wildfires starting earlier in the year and continuing to ignite throughout all seasons, fire season is now a year-round affair not just in California, but also around the world. In fact, the U.S. Forest Service found that fire seasons have grown longer in 25 percent of Earth's vegetation-covered areas.

This animation shows how FireSat would use a network of satellites around the Earth to detect fires faster than ever before. | + Expand image

For NASA's Jet Propulsion Laboratory, which is located in Southern California, the fires cropping up near and far are a constant reminder that its efforts to study wildfires around the world from space, the air, and on the ground are as important as ever.

JPL uses a suite of Earth satellites and airborne instruments to help better understand fires and aide in fire management and mitigation. By looking at multiple images and types of data from these instruments, scientists compare what a region looked like before, during, and after a fire, as well as how long the area takes to recover.

While the fire is burning, scientists watch its behavior from an aerial perspective to get a big-picture view of the fire itself and the air pollution it is generating in the form of smoke filled with carbon monoxide and carbon dioxide.

Natasha Stavros, a wildfire expert at JPL, joined Zach Tane with the U.S. Forest Service during a Facebook Live event to discuss some of these technologies and how they're used to understand wildfire behavior and improve wildfire recovery.

Additionally, JPL worked with a startup in San Francisco called Quadra Pi R2E to develop FireSat, a global network of satellites designed to detect wildfires and alert firefighting crews faster.

Using these technologies, NASA scientists are gaining a broader understanding of fires and their impacts.

Why It's Important

One of the ways we often hear wildfires classified is by how much area they have burned. Though this is certainly of some importance, of greater significance to fire scientists is the severity of the fire. Wildfires are classified as burning at different levels of severity: low, medium, and high. Severity is a function of intensity, or how hot the fire was, and its spread rate, or the speed at which it travels. A high-severity fire is going to do some real damage. (Severity is measured by the damage left after the fire, but can be estimated during a fire event by calculating spread rate and measuring flame height which indicates intensity.)

The impacts of wildfires range from the immediate and tangible to the delayed and less obvious. The potential for loss of life, property, and natural areas is one of the first threats that wildfires pose. From a financial standpoint, fires can lead to a downturn in local economies due to loss of tourism and business, high costs related to infrastructure restoration, and impacts to federal and state budgets.

The release of greenhouse gases like carbon dioxide and carbon monoxide is also an important consideration when thinking about the impacts of wildfires. Using NASA satellite data, researchers at the University of California, Berkeley, determined that between 2001 and 2010, California wildfires emitted about 46 million tons of carbon, around five to seven percent of all carbon emitted by the state during that time period.

In California and the western United States, longer fire seasons are linked to changes in spring rains, vapor pressure, and snowmelt – all of which have been connected to climate change. Wildfires serve as a climate feedback loop, meaning certain effects of wildfires – the release of CO₂ and CO – contribute to climate change, thereby enhancing the factors that contribute to longer and stronger fire seasons.

While this may seem like a grim outlook, it’s worth noting that California forests still act as carbon sinks – natural environments that are capable of absorbing carbon dioxide from the atmosphere. In certain parts of the state, each hectare of redwood forest is able to store the annual greenhouse gas output of 500 Americans.

Studying and managing wildfires is important for maintaining resources, protecting people, properties, and ecosystems, and reducing air pollution, which is why JPL, NASA, and other agencies are continuing their study of these threats and developing technologies to better understand them.

Teach It

Have your students try their hands at solving some of the same fire-science problems that NASA scientists do with these two lessons that get students in grades 3 through 12 using NASA data, algebra, and geometry to approximate burn areas, fire-spread rate and fire intensity:

•
  Fired Up Over Math: Studying Wildfires from Space

  Students learn how scientists assess wildfires using remote sensing and solve related math problems, appropriate for various grade levels.

  Grades 3-12

  Time 30 mins - 1 hr

•
  Pixels on Fire

  Students use mobile devices and computers to learn about remote sensing and satellite data to determine when and where wildfires have started.

  Grades 4-8

  Time 30 mins - 1 hr

Explore More

•
  Teachable Moment

  NASA's Eyes on Extreme Weather

  Learn about the causes and effects of extreme weather including hurricanes, floods, droughts, and wildfires, plus how NASA studies them.

• Wildfire Images from NASA Earth Observatory
• NASA/JPL FireSat Press Release
• SciJinks: Can Meteorologists Help Fight Wildfires?
• Soberanes Fire: Image Captured by NASA's Terra Spacecraft
• Let's Clear the Air: The Danger of Forest Fire Smoke to Firefighters
• NASA Climate Change News: "Local Winds Play a Key Role in Some Megafires
• NASA Climate Change News: "Studying Weather to Help See the Likelihood of Fires"

Lyle Tavernier contributed to this feature.

TAGS: teachable moments, wildfires, science, Earth Science, Earth, Climate Change, Climate TM

•

  ABOUT THE AUTHOR

  Ota Lutz, K-12 Education Group Manager, NASA-JPL Education Office

  Ota Lutz is the manager of the K-12 Education Group at NASA’s Jet Propulsion Laboratory. When she’s not writing new lessons or teaching, she’s probably cooking something delicious, volunteering in the community, or dreaming about where she will travel next.

How It Worked

Human eyes can see only the portion of the electromagnetic spectrum known as visible light. This is because the human retina can detect only certain wavelengths of light through special photoreceptors called rods and cones. Everything we see with our eyes either emits or reflects visible light. But visible light is just a small portion of the electromagnetic spectrum. To "see" things that emit or reflect other wavelengths of light, we must rely on technology designed to sense those portions of the electromagnetic spectrum. Using this specialized technology allows us to peer into space and observe objects and processes we wouldn’t otherwise be able to see.

This diagram shows wavelengths of light on the electromagnetic spectrum and how they're used for various applications. Image credit: NASA | + Expand image

Infrared is one of the wavelengths of light that cannot be seen by human eyes. (It can sometimes be felt by our skin as heat if we are close enough to a strong source.) All objects that have temperature emit many wavelengths of light. The warmer they are, the more light they emit. Most things in the universe are warm enough to emit infrared radiation, and that light can be seen by an infrared-detecting telescope. Because Earth’s atmosphere absorbs most infrared radiation, infrared observations of space are best conducted from outside the planet's atmosphere.

So, to get a look at space objects that were otherwise hidden from view, NASA launched the Spitzer Space Telescope in 2003. Cooled by liquid helium and capable of viewing the sky in infrared, Spitzer launched into an Earth-trailing orbit around the Sun, where it became part of the agency's Great Observatory program along with the visible-light and near-infrared-detecting Hubble Space Telescope, Compton Gamma-Ray Observatory and Chandra X-ray Observatory. (Keeping the telescope cold reduces the chances of heat, or infrared light, from the spacecraft interfering with its astronomical observations.)

Over its lifetime, Spitzer has been used to detect light from objects and regions in space where the human eye and optical, or visible-light-sensing, telescopes may see nothing.

Why It's Important

NASA's Spitzer Space Telescope has returned volumes of data, yielding numerous scientific discoveries.

Vast, dense clouds of dust and gas block our view of many regions of the universe. Infrared light can penetrate these clouds, enabling Spitzer to peer into otherwise hidden regions of star formation, newly forming planetary systems and the centers of galaxies.

The bow shock, or shock wave, in front of the giant star Zeta Ophiuchi shown in this image from Spitzer is visible only in infrared light. The bow shock is created by winds that flow from the star, making ripples in the surrounding dust. Image credit: NASA/JPL-Caltech | › Full image and caption

Infrared astronomy also reveals information about cooler objects in space, such as smaller stars too dim to be detected by their visible light, planets beyond our solar system (called exoplanets) and giant molecular clouds where new stars are born. Additionally, many molecules in space, including organic molecules thought to be key to life's formation, have unique spectral signatures in the infrared. Spitzer has been able to detect those molecules when other instruments have not.

Both NASA's Spitzer and Hubble space telescopes contributed to this vibrant image of the Orion nebula. Spitzer's infrared view exposed carbon-rich molecules, shown in this image as wisps of red and orange. Image credit: NASA/JPL-Caltech/T. Megeath (University of Toledo) & M. Robberto (STScI) | › Full image and caption

Stars are born from condensing clouds of dust and gas. These newly formed stars are optically visible only once they have blown away the cocoon of dust and gas in which they were born. But Spitzer has been able to see infant stars as they form within their gas and dust clouds, helping us learn more about the life cycles of stars and the formation of solar systems.

Newborn stars peek out from beneath their natal blanket of dust in this dynamic image of the Rho Ophiuchi dark cloud from Spitzer. The colors in this image reflect the relative temperatures and evolutionary states of the various stars. The youngest stars are shown as red while more evolved stars are shown as blue. Image credit: NASA/JPL-Caltech/Harvard-Smithsonian CfA | › Full image and caption

Infrared emissions from most galaxies come primarily from stars as well as interstellar gas and dust. With Spitzer, astronomers have been able to see which galaxies are furiously forming stars, locate the regions within them where stars are born and pinpoint the cause of the stellar baby boom. Spitzer has given astronomers valuable insights into the structure of our own Milky Way galaxy by revealing where all the new stars are forming.

This Spitzer image, which covers a horizontal span of 890 light-years, shows hundreds of thousands of stars crowded into the swirling core of our spiral Milky Way galaxy. In visible-light pictures, this region cannot be seen at all because dust lying between Earth and the galactic center blocks our view. Image credit: NASA/JPL-Caltech | › Full image and caption

Spitzer marked a new age in the study of planets outside our solar system by being the first telescope to directly detect light emitted by these so-called exoplanets. This has made it possible for us to directly study and compare these exoplanets. Using Spitzer, astronomers have been able to measure temperatures, winds and the atmospheric composition of exoplanets – and to better understand their potential habitability. The discoveries have even inspired artists at NASA to envision what it might be like to visit these planets.

Thanks to Spitzer, scientists are learning more and more about planets beyond our solar system. These discoveries have even inspired a series of posters created by artists at NASA, who imagined what future explorers might encounter on these faraway worlds. Image credit: NASA/JPL-Caltech | › Download posters

Data collected by Spitzer will continue to be analyzed for decades to come and is sure to yield even more scientific findings. It's certainly not the end of NASA's quest to get an infrared window into our stellar surroundings. In the coming years, the agency plans to launch its James Webb Space Telescope, with a mirror more than seven times the diameter of Spitzer's, to see the universe in even more detail. And NASA's Wide Field Infrared Survey Telescope, or WFIRST, will continue infrared observations in space with improved technology. Stay tuned for even more exciting infrared imagery, discoveries and learning!

Teach It

Use these lessons, videos and online interactive features to teach students how we use various wavelengths of light, including infrared, to learn about our universe:

•
  Using Light to Study Planets

  Students build a spectrometer using basic materials as a model for how NASA uses spectroscopy to determine the nature of elements found on Earth and other planets.

  Grades 6-11

  Time > 2 hrs

• Lessons: Cool Cosmos Infrared Lessons
• Website: Cool Cosmos Infrared Primer
• Materials: Infrared Posters and Printouts

Explore More

• Article: NASA Celebrates the Legacy of the Spitzer Space Telescope
• Website: Spitzer Space Telescope Mission
• Video: Spitzer Final Voyage VR 360
• Video: Science in a Minute: The Art of Spitzer Space Telescope
• Images: Spitzer Zoomable Images
• Participate: NASA/IPAC Teacher Archive Research Program

Also, check out these related resources for kids from NASA’s Space Place:

• Infrared games, articles and activities

TAGS: Teachable Moments, science, astronomy, K-12 education, teachers, educators, parents, STEM, lessons, activities, Spitzer, Space Telescope, Missions, Spacecraft, Stars, Galaxies, Universe, Infrared, Wavelengths, Spectrum, Light

•

  ABOUT THE AUTHOR

  Ota Lutz, K-12 Education Group Manager, NASA-JPL Education Office

  Ota Lutz is the manager of the K-12 Education Group at NASA’s Jet Propulsion Laboratory. When she’s not writing new lessons or teaching, she’s probably cooking something delicious, volunteering in the community, or dreaming about where she will travel next.

How It Works

Global climate change, or the overall warming of our planet, has had observable effects on the environment. Glaciers have shrunk, ice on rivers and lakes is breaking up and melting earlier in the year, precipitation patterns have changed, plant and animal habitat ranges have shifted, and trees are flowering sooner, exposing fruit blossoms to damaging erratic spring hail and deadly late frost. Effects that scientists had predicted in the past are now occurring: loss of sea ice, accelerated sea level rise, shifting storm patterns and longer, more intense heat waves.

Some of the most visible and disruptive effects of global climate change are extreme weather and resulting disasters such as wildfires and flooding. These events vary by geographic location, with many regions, such as the Southwest United States and parts of Central and South America, Asia, Europe, Africa and Australia, experiencing more heat, drought and insect outbreaks that contribute to increased wildfires. Other regions of the world, including coastal areas of the United States and many island nations, are experiencing flooding and salt water intrusion into drinking water wells as a result of sea level rise and storm surges from intense tropical storms. And some areas of the world, such as the Midwestern and Southern United States, have been inundated with rain that has resulted in catastrophic flooding.

This pair of images shows the northeast side of Tulsa, Oklahoma, in May 2018 (left) and in May 2019 (right) after the Caney and Verdigris rivers flooded. Image credit: NASA/USGS | › Full image and caption

Temperatures, rainfall, droughts, high-intensity hurricanes and severe flooding events all are increasing and projected to continue as the world's climate warms, according to the National Climate Assessment. Weather is dynamic and various types of weather can interact to produce extreme outcomes. Here's how climate change can play a role in some of these weather extremes.

High Temperatures

Eighteen of the 19 warmest years on record have occurred since 2001. September 2019 tied as the hottest month on record for the planet. Since the 1880s, the average global surface temperature has risen about 2 degrees Fahrenheit (1 degree Celsius). As a result of warming temperatures, global average sea level has risen nearly 7 inches (178 millimeters) over the past 100 years. Data show this warming of the Earth system has been driven in large part by increased emissions into the atmosphere of carbon dioxide and other greenhouse gases created by human activities. And as temperatures continue to rise, we can expect more extreme weather.

Drought and Wildfires

The image on the left shows air temperatures during a record-breaking June 2019 heat wave in Alaska. Around the same time, a cluster of lightning-triggered wildfires broke out in the same area. Smoke from the wildfires can be seen in the image on the right. Image credit: NASA | › Full image and caption

High temperatures alone can lead to drought. Drought can cause problems for humans, animals and crops dependent on water and can weaken trees, making them more susceptible to disease and insect attacks. High temperatures combined with low humidity, dry vegetation and hot, dry, fast winds typify what is known as "fire weather" or "fire season." During fire season, wildfires are more likely to start, spread rapidly and be difficult to extinguish.

The Operational Land Imager on the Landsat 8 satellite captured this image of the Walker Fire in Northern California on Sept. 8, 2019. Image credit: NASA/USGS | › Full image and caption

In California, where climate change has brought hotter, drier weather, residents are plagued by two fire seasons – one lasting from June through September that is primarily caused by high heat, low humidity and dry vegetation, and another lasting from October through April that is generally more volatile, as it is fueled by high winds. This 11-month fire season is longer than in past years. In recent years, California has also seen an increase in destructive wildfires. Weather extremes and climate change are partly to blame, even in relatively wet years. In California, these years mean more plant growth and potentially more fuel for fires when those plants dry out in the fall and the winds arrive. Wildfires have some fairly obvious effects on people and property. In addition to the visible destruction, smoke from wildfires can dramatically decrease air quality, pushing carbon into the air and destroying important carbon-sequestering plants and trees. Large-scale biomass destruction, as is happening in the Amazon rainforest, will have a lasting impact on important Earth processes.

Hurricanes

This image, acquired on October 11, 2019, by the Moderate Resolution Imaging Spectroradiometer, or MODIS, on NASA's Aqua satellite, shows Typhoon Hagibis as its outer cloud bands neared Japan. Image credit: NASA | › Full image and caption

Since the 1980s, regions of the world prone to hurricanes, cyclones and typhoons have witnessed an increase in intensity, frequency and duration of these destructive storms. All three are intense tropical storms that form over oceans. (The different names refer to where on Earth they occur.) They are all fueled by available heat energy from warm ocean water. Warmer oceans provide more energy to passing storms, meaning hurricanes can form more quickly and reach higher speeds. Typhoon Hagibis, which recently left a trail of destruction in Japan, was described as the worst storm to hit the region in decades. Growing unusually quickly from a tropical storm to a Category 5 storm in less than a day, Hagibis was so intense it was called a super typhoon. In 2018, the second strongest cyclone to hit a U.S. territory and the largest typhoon of the year, Super Typhoon Yutu, caused catastrophic destruction on the Mariana Islands, an archipelago in the North Pacific Ocean. More intense storms and rising sea levels make storm surge – ocean water that is pushed toward the shore by strong winds – even worse than in the past. Typhoons can wreak havoc on infrastructure and compromise fresh water reserves. It can take months or even years for a hard-hit region to recover.

Snowstorms

The MODIS instrument aboard NASA's Terra Satellite captured the low-pressure area near New England that brought heavy snows and thundersnow to the Mid-Atlantic and Northeastern U.S. in January 2011. Image credit: NASA Goddard/MODIS Rapid Response Team | › Full image and caption

Like any other weather event, extreme cold weather events such as blizzards and unusually heavy snowfall can be, but are not always, linked to climate change. Just as warmer ocean water increases the intensity of a warm tropical storm, warmer than average winter ocean temperatures in the Atlantic feed additional energy and moisture into cold storms, influencing the severity of snowfall once the storm comes ashore in the Eastern United States. There is some natural variability, such as the presence of El Niño conditions, that can also lead to severe snowstorms in the region. But natural variability isn't enough to fully explain the increase in major snowstorms in the U.S. In fact, the frequency of extreme snowstorms in the eastern two-thirds of the region has increased dramatically over the last century. Approximately twice as many extreme snowstorms occurred in the U.S. during the latter half of the 20th century as in the first half.

Why It's Important

Because of the risk to lives and property, monitoring the increasing number of extreme weather events is more important now than ever before. And a number of NASA satellites and airborne science instruments are doing just that.

This graphic shows NASA's fleet of Earth-science satellites designed to monitor weather and climate across the globe. Image credit: NASA | › Full image and caption

A large global constellation of satellites, operated by NASA and NOAA, combined with a small fleet of planes operated by the U.S. Forest Service, help detect and map the extent, spread and impact of forest fires. As technology has advanced, so has the value of remote sensing, the science of scanning Earth from a distance using satellites and high-flying airplanes. Wildfire data from satellites and aircraft provide information that firefighters and command centers can use to call evacuation orders and make decisions about where to deploy crews to best arrest a fire's progress.

The agencies' satellites and airborne instruments also work in conjunction with those from international partners to provide data about hurricanes to decision makers at the National Hurricane Center, where predictions and warnings are issued so evacuations can be coordinated among the public and local authorities. Visible imagery from NASA satellites helps forecasters understand whether a storm is brewing or weakening based on changes to its structure. Other instruments on NASA satellites can measure sea surface characteristics, wind speeds, precipitation, and the height, thickness and inner structure of clouds.

Three images of Hurricane Dorian, as seen by a trio of NASA's Earth-observing satellites in August 2019. The data sent by the spacecraft revealed in-depth views of the storm, including detailed heavy rain, cloud height and wind. Image credit: NASA/JPL-Caltech | › Full image and caption

NASA's airborne instruments, such as those aboard the Global Hawk aircraft, provide data from within the storm that cannot be otherwise obtained. Global Hawk can fly above a storm in a back-and-forth pattern and drop instruments called dropsondes through the storm. These instruments measure winds, temperature, pressure and humidity on their way to the surface. This detailed data can be used to characterize a storm, informing scientists of shifting patterns and potential future developments.

NASA missions will continue to study both weather and climate phenomena – whether they be droughts, floods, wildfires, hurricanes or other extremes – returning data for analysis. New airborne instruments aboard the satellite-simulating ER-2 and cloud-penetrating P-3 aircraft will fly missions starting in 2020 to study Atlantic coast-threatening snowstorms. Data from these flights will be combined with ground-based radar measurements and satellite measurements to better understand storms and their potential impact. Meanwhile, climate science instruments and satellites will continue to collect data that can inform everyone about the many aspects of our changing planet.

Teach It

Weather and climate data isn't just for meteorologists. Explore the resources and standards-aligned lessons below to get students analyzing local weather patterns, understanding wildfire monitoring and modeling global climate!

Precipitation and Clouds

•
  Teachable Moment: NASA Mission Gets the View on Earth’s Water Resources from Space

  Explore the water cycle and its effects on communities through the lens of a NASA satellite designed to track the movement of water around the globe.

•
  Precipitation Towers: Modeling Weather Data

  This lesson uses stacking cubes as a way to graph precipitation data, comparing the precipitation averages and seasonal patterns for several locations.

  Grades K-5

  Time 30 mins - 1 hr

•
  The Sky and Dichotomous Key

  Students learn about cloud types to be able to predict inclement weather. They will then identify areas in the school affected by severe weather and develop a solution to ease the impacts of rain, wind, heat or sun.

  Grades K-3

  Time 30 mins - 1 hr

Wildfires and Temperature

•
  Teachable Moment: The Science of Wildfires

  As wildfires burn over larger areas and longer portions of the year, NASA scientists are finding new ways to study their impacts on our climate and communities.

•
  Fired Up Over Math: Studying Wildfires from Space

  Students learn how scientists assess wildfires using remote sensing and solve related math problems, appropriate for various grade levels.

  Grades 3-12

  Time 30 mins - 1 hr

•
  Pixels on Fire

  Students use mobile devices and computers to learn about remote sensing and satellite data to determine when and where wildfires have started.

  Grades 4-8

  Time 30 mins - 1 hr

•
  Graphing Global Temperature Trends

  Students use global temperature data to create models and compare short-term trends to long-term trends.

  Grades 5-12

  Time 1-2 hrs

Sea Level

•
  Teachable Moment: The Science of Earth's Rising Seas

  How do we know sea-level rise is happening and what’s causing it? Learn about the NASA satellites studying the problem and get students exploring the data through math.

•
  Graphing Sea-Level Trends

  In this activity, students will use sea-level rise data to create models and compare short-term trends to long-term trends. They will then determine whether sea-level rise is occurring based on the data.

  Grades 5-12

  Time 1-2 hrs

Satellites and Data

•
  Teachable Moment: Celebrate Earth Day with NASA Science Data

  NASA uses a fleet of satellites and science instruments to study our changing climate. Here’s how students can use that NASA data to do Earth science of their own.

•
  How to Read a Heat Map

  Students learn to read, interpret and compare “heat map” representations of Earth science data.

  Grades 4-12

  Time 30 mins - 1 hr

•
  Build a Satellite

  Students will use the engineering design process to design, build, test and improve a model satellite intended to investigate the surface of a planet.

  Grades 5-8

  Time > 2 hrs

Climate

•
  Lesson Collection: Climate

  Explore a collection of standards-aligned lessons all about Earth's climate.

  Grades Varies

  Time Varies

For Students

•
  The Change of Seasons: Views from Space

  See how seasonal changes affect our planet.

  Type Slideshow

  Subject Earth Science

•
  Take the Pi in the Sky Challenge

  Can you use pi to solve these stellar math problems faced by NASA scientists and engineers?

  Type Slideshow

  Subject Math

•
  Make a Cloud in a Bottle

  Have you ever wondered how clouds form? In this activity, you can make your own cloud to see for yourself!

  Type Project

  Subject Earth Science

•
  NASA's Earth Minute

  Learn how NASA studies Earth's weather and climate in these one minute videos!

  Type Video Series

  Subject Earth Science

Explore More

• Hurricanes as Heat Engines Story Map Lesson
• NOAA Educator Resources
• Article: "The Impact of Climate Change on Natural Disasters"
• NASA Earth Observatory - Atmosphere
• NASA Earth Observatory - Natural Event
• Interactive: NASA Eyes

Resources for Students

• Extreme Weather Quiz
• Weather and Climate Facts

TAGS: Earth, Earth science, climate change, weather, extreme weather, hurricane, wildfire, typhoons, drought, flood, sea level rise, Climate TM

•

  ABOUT THE AUTHOR

  Ota Lutz, K-12 Education Group Manager, NASA-JPL Education Office

  Ota Lutz is the manager of the K-12 Education Group at NASA’s Jet Propulsion Laboratory. When she’s not writing new lessons or teaching, she’s probably cooking something delicious, volunteering in the community, or dreaming about where she will travel next.

How They Did It

Apollo Projects for Students

Design a mission to the Moon with these DIY projects for students.

When NASA was founded in 1958, scientists were unsure whether the human body could even survive orbiting Earth. Space is a demanding environment. Depending on where in space you are, it can lack adequate air for breathing, be very cold or hot, and have dangerous levels of radiation. Additionally, the physics of space travel make everything inside a space capsule feel weightless even while it's hurtling through space. Floating around inside a protective spacecraft may sound fun, and it is, but it also can have detrimental effects on the human body. Plus, it can be dangerous with the hostile environment of space lurking on the other side of a thin metal shell.

In 1959, NASA's Jet Propulsion Laboratory began the Ranger project, a mission designed to impact the Moon – in other words, make a planned crash landing. During its descent, the spacecraft would take pictures that could be sent back to Earth and studied in detail. These days, aiming to merely impact a large solar system body sounds rudimentary. But back then, engineering capabilities and course-of-travel, or trajectory, mathematics were being developed for the first time. A successful impact would be a major scientific and mathematical accomplishment. In fact, it took until July 1964 to achieve the monumental task, with Ranger 7 becoming the first U.S. spacecraft to impact the near side of the Moon, capturing and returning images during its descent.

These side-by-side images show a model of the Ranger 7 spacecraft (left) and an image the spacecraft took of the Moon (right) before it impacted the surface. Image credit: NASA/JPL-Caltech | › + Expand image

After the successful Ranger 7 mission, two more Ranger missions were sent to the Moon. Then, it was time to land softly. For this task, JPL partnered with Hughes Aircraft Corporation to design and operate the Surveyor missions between 1966 and 1968. Each of the seven Surveyor landers were equipped with a television camera – with later landers carried scientific instruments, too – aimed at obtaining up-close lunar surface data to assess the Moon's suitability for a human landing. The Surveyors also demonstrated in-flight maneuvers and in-flight and surface-communications capabilities.

These side-by-side images show Apollo 12 Commander Charles Conrad Jr. posing with the Surveyor 7 spacecraft on the Moon (left) and a mosaic of images taken by Surveyor 3 on the lunar surface (right). Image credits: NASA/JPL-Caltech | › + Expand image

In 1958, at the same time JPL was developing the technological capabilities to get to the Moon, NASA began the Mercury program to see if it was possible for humans to function in space. The success of the single-passenger Mercury missions, with six successful flights that placed two astronauts into suborbital flight and four astronauts into Earth orbit, kicked off the era of U.S. human spaceflight.

The success of the single-passenger Mercury capsule, shown in this illustrated diagram, proved that humans could live and work in space, paving the way for future human exploration. Image credit: NASA | › Full image and caption

In 1963, NASA's Gemini program proved that a larger capsule containing two humans could orbit Earth, allowing astronauts to work together to accomplish science in orbit for long-duration missions (up to two weeks in space) and laying the groundwork for a human mission to the Moon. With the Gemini program, scientists and engineers learned how spacecraft could rendezvous and dock while in orbit around Earth. They were also able to perfect re-entry and landing methods and began to better understand the effects of longer space flights on astronauts. After the successful Gemini missions, it was time to send humans to the Moon.

The Gemini spacecraft, shown in this illustrated cutaway, paved the way for the Apollo missions. Image credit: NASA | › Full image and caption

The Apollo program officially began in 1963 after President John F. Kennedy directed NASA in September of 1962 to place humans on the Moon by the end of the decade. This was a formidable task as no hardware existed at the time that would accomplish the feat. NASA needed to build a giant rocket, a crew capsule and a lunar lander. And each component needed to function flawlessly.

Rapid progress was made, involving numerous NASA and contractor facilities and hundreds of thousands of workers. A crew capsule was designed, built and tested for spaceflight and landing in water by the NASA contractor North American Aviation, which eventually became part of Boeing. A lunar lander was developed by the Grumman Corporation. Though much of the astronaut training took place at or near the Manned Spacecraft Center, now known as NASA’s Johnson Space Center, in Texas, astronauts practiced lunar landings here on Earth using simulators at NASA's Dryden (now Armstrong) Flight Research Center in California and at NASA's Langley Research Center in Virginia. The enormous Saturn V rocket was a marvel of complexity. Its first stage was developed by NASA's Marshall Space Flight Center in Alabama. The upper-stage development was managed by the Lewis Flight Propulsion Center, now known as NASA's Glenn Research Center, in Ohio in partnership with North American Aviation and Douglas Aircraft Corporation, while Boeing integrated the whole vehicle. The engines were tested at what is now NASA's Stennis Space Center in Mississippi, and the rocket was transported in pieces by water for assembly at Cape Kennedy, now NASA's Kennedy Space Center, in Florida. As the Saturn V was being developed and tested, NASA also developed a smaller, interim vehicle known as the Saturn I and started using it to test Apollo hardware. A Saturn I first flew the Apollo command module design in 1964.

Unfortunately, one crewed test of the Apollo command module turned tragic in February 1967, when a fire erupted in the capsule and killed all three astronauts who had been designated as the prime crew for what became known as Apollo 1. The command module design was altered in response, delaying the first crewed Apollo launch by 21 months. In the meantime, NASA flew several uncrewed Apollo missions to test the Saturn V. The first crewed Apollo launch became Apollo 7, flown on a Saturn IB, and proved that the redesigned command module would support its crew while remaining in Earth orbit. Next, Earth-Moon trajectories were calculated for this large capsule, and the Saturn V powered Apollo 8 set off for the Moon, proving that the calculations were accurate, orbiting the Moon was feasible and a safe return to Earth was possible. Apollo 8 also provided the first TV broadcast from lunar orbit. The next few Apollo missions further proved the technology and allowed humans to practice procedures that would be needed for an eventual Moon landing.

On July 16, 1969, a Saturn V rocket launched three astronauts to the Moon on Apollo 11 from Cape Kennedy. The Apollo 11 spacecraft had three parts: a command module, called "Columbia," with a cabin for the three astronauts; a service module that provided propulsion, electricity, oxygen and water; and a lunar module, "Eagle," that provided descent to the lunar surface and ascent back to the command and service modules.

In this image collage, the Apollo 11 lunar module is shown on its descent to the Moon (left), on the lunar surface as Buzz Aldrin descends the stairs (middle), and on its ascent back to the command module (right). Image credit: NASA | › View full image collection

On July 20, while astronaut and command module pilot Michael Collins orbited the Moon, Neil Armstrong and Buzz Aldrin landed Eagle on the Moon and set foot on the surface, accomplishing a first for humankind. They collected regolith (surface "dirt") and rock samples, set up experiments, planted an American flag and left behind medallions honoring the Apollo 1 crew and a plaque that read, "We came in peace for all mankind."

This collage of images from the Apollo 11 Moon landing shows Buzz Aldrin posing for a photo on the Moon (left), and setting up the solar wind and seismic experiments (middle). The image on the right shows the plaque the team placed on Moon to commemorate the historic event. Image credit: NASA | › View full image collection

After 21.5 hours on the lunar surface, Armstrong and Aldrin rejoined Collins in the Columbia command module and, on July 21, headed back to Earth. On July 24, after jettisoning the service module, Columbia entered Earth's atmosphere. With its heat shield facing forward to protect the astronauts from the extreme friction heating outside the capsule, the craft slowed and a series of parachutes deployed. The module splashed down in the South Pacific Ocean, 380 kilometers (210 nautical miles) south of Johnston Atoll. Because scientists were uncertain about contamination from the Moon, the astronauts donned biological-isolation garments delivered by divers from the recovery ship, the aircraft carrier the USS Hornet. The astronauts boarded a life raft and then the USS Hornet, where the outside of their biological-isolation suits were washed down with disinfectant. To be sure no contamination was brought back to Earth from the Moon, the astronauts were quarantined until Aug. 10, at which point scientists determined the risk was low that biological contaminants or microbes had returned with the astronauts. Columbia was also disinfected and is now part of the National Air and Space Museum in Washington, D.C.

These side-by-side images show the Apollo 11 astronauts leaving the capsule in their biological isolation garments after successfully splashing down in the South Pacific Ocean (left). At right, President Richard M. Nixon welcomes the Apollo 11 astronauts, (left to right) Neil A. Armstrong, Michael Collins and Buzz Aldrin, while they peer through the window of the Mobile Quarantine Facility aboard the USS Hornet. Image credit: NASA | › View full image collection

The Apollo program continued with six more missions to the Moon over the next three years. Astronauts placed seismometers to measure "moonquakes" and other science instruments on the lunar surface, performed science experiments, drove a carlike moon buggy on the surface, planted additional flags and returned more lunar samples to Earth for study.

Why It's Important

Apollo started out as a demonstration of America's technological, economic and political prowess, which it accomplished with the first Moon landing. But the Apollo missions accomplished even more in the realm of science and engineering.

Some of the earliest beneficiaries of Apollo research were Earth scientists. The Apollo 7 and 9 missions, which stayed in Earth orbit, took photographs of Earth in different wavelengths of light, highlighting things that might not be seen on the ground, like diseased trees and crops. This research led directly to the joint NASA-U.S. Geological Survey Landsat program, which has been studying Earth's resources from space for more than 45 years.

Samples returned from the Moon continue to be studied by scientists around the world. As new tools and techniques are developed, scientists can learn even more about our Moon, discovering clues to our planet's origins and the formation of the solar system. Additionally, educators can be certified to borrow lunar samples for use in their classrooms.

The Apollo 11 astronauts take a closer look at a sample they brought back from the Moon. Image credit: NASA | › View full image collection

Perhaps the most important scientific finding came from comparing similarities in the composition of lunar and terrestrial rocks and then noting differences in the amount of specific substances. This suggested a new theory of the Moon's formation: that it accreted from debris ejected from Earth by a collision with a Mars-size object early in our planet's 4.5-billion-year history.

The 12 astronauts who walked on the Moon are the best-known faces of the Apollo program, but in numbers, they were also the smallest part of the program. About 400,000 men and women worked on Apollo, building the vehicles, calculating trajectories, even making and packing food for the crews. Many of them worked on solving a deceptively simple question: "How do we guide astronauts to the Moon and back safely?" Some built the spacecraft to carry humans to the Moon, enable surface operations and safely return astronauts to Earth. Others built the rockets that would launch these advanced spacecraft. In doing all this, NASA engineers and scientists helped lead the computing revolution from transistors to integrated circuits, the forebears to the microchip. An integrated circuit – a miniaturized electronic circuit that is used in nearly all electronic equipment today – is lighter weight, smaller and able to function on less power than the older transistors and capacitors. To suit the needs of the space capsule, NASA developed integrated circuits for use in the capsule's onboard computers. Additionally, computing advancements provided NASA with software that worked exactly as it was supposed to every time. That software lead to the development of the systems used today in retail credit-card swipe devices.

Some lesser-known benefits of the Apollo program include the technologies that commercial industries would then further advance to benefit humans right here on Earth. These "spinoffs" include technology that improved kidney dialysis, modernized athletic shoes, improved home insulation, advanced commercial and residential water filtration, and developed the freeze-drying technique for preserving foods.

Apollo was succeeded by missions that have continued to build a human presence in space and advance technologies on Earth. Hardware developed for Apollo was used to build America's first Earth-orbiting space station, Skylab. After Skylab, during the Apollo-Soyuz test project, American and Soviet spacecraft docked together, laying the groundwork for international cooperation in human spaceflight. American astronauts and Soviet cosmonauts worked together aboard the Soviet space station Mir, performing science experiments and learning about long-term space travel's effects on the human body. Eventually, the U.S. and Russia, along with 13 other nations, partnered to build and operate the International Space Station, a world-class science laboratory orbiting 400 kilometers (250 miles) above Earth, making a complete orbit every 90 minutes.

Although the configuration is not final, this infographic shows the current lineup of parts comprising the lunar Gateway. Image credit: NASA | › Full image and caption

And the innovations continue today. NASA is planning the Artemis mission to put humans on the Moon again in 2024 with innovative new technologies and the intent of establishing a permanent human presence. Working in tandem with commercial and international partners, NASA will develop the Space Launch System launch vehicle, Orion crew capsule, a new lunar lander and other operations hardware. The lunar Gateway – a small spaceship that will orbit the Moon and include living quarters for astronauts, a lab for science, and research and ports for visiting spacecraft – will provide access to more of the lunar surface than ever before. While at the Moon, astronauts will research ways to use lunar resources for survival and further technological development. The lessons and discoveries from Artemis will eventually pave a path for a future human mission to Mars.

Teach It

Use these standards-aligned lessons to help students learn more about Earth's only natural satellite:

•
  Observing the Moon

  Students identify the Moon’s location in the sky and record their observations over the course of the moon-phase cycle in a journal.

  Grades K-6

  Time 30 mins - 1 hr

•
  Moon Phases

  Students learn about the phases of the moon by acting them out.

  Grades 1-6

  Time 30 mins - 1 hr

•
  Whip Up a Moon-Like Crater

  Whip up a moon-like crater with baking ingredients as a demonstration for students.

  Grades 1-6

  Time 30 mins - 1 hr

•
  Modeling the Earth-Moon System

  Students learn about scale models and distance by creating a classroom-size Earth-Moon system.

  Grades 6-8

  Time 30 mins - 1 hr

As students head out for the summer, get them excited to learn more about the Moon and human exploration using these student projects:

•
  Make a Moon Phases Calendar and Calculator

  Like a decoder wheel for the Moon, this calendar will show you where and when to see the Moon and every moon phase throughout the year!

  Type Project

  Subject Science

•
  Make a Straw Rocket

  Create a paper rocket that can be launched from a soda straw – then, modify the design to make the rocket fly farther!

  Type Project

  Subject Engineering

•
  Make an Astronaut Lander

  Design and build a lander that will protect two "astronauts" when they touch down.

  Type Project

  Subject Engineering

•
  Make a Cardboard Rover

  Build a rubber-band-powered rover that can scramble across a room.

  Type Project

  Subject Engineering

Explore More

• NASA Apollo 50th Photos, Video and Audio Recordings
• NASA Moon to Mars website
• NASA Moon to Mars poster
• Blog: So You Want to Be an Astronaut
• Explore Apollo 50th Anniversary events near you

TAGS: K-12 Education, Teachers, Educators, Classroom, Engineering, Science, Students, Projects, Moon, Apollo, Summer

•

  ABOUT THE AUTHOR

  Ota Lutz, K-12 Education Group Manager, NASA-JPL Education Office

  Ota Lutz is the manager of the K-12 Education Group at NASA’s Jet Propulsion Laboratory. When she’s not writing new lessons or teaching, she’s probably cooking something delicious, volunteering in the community, or dreaming about where she will travel next.

Accomplishing what was previously thought to be impossible, a team of international astronomers has captured an image of a black hole’s silhouette.

Evidence of the existence of black holes – mysterious places in space where nothing, not even light, can escape – has existed for quite some time, and astronomers have long observed the effects on the surroundings of these phenomena. In the popular imagination, it was thought that capturing an image of a black hole was impossible because an image of something from which no light can escape would appear completely black. For scientists, the challenge was how, from thousands or even millions of light-years away, to capture an image of the hot, glowing gas falling into a black hole.

An ambitious team of international astronomers and computer scientists has managed to accomplish both. Working for well over a decade to achieve the feat, the team improved upon an existing radio astronomy technique for high-resolution imaging and used it to detect the silhouette of a black hole – outlined by the glowing gas that surrounds its event horizon, the precipice beyond which light cannot escape. Learning about these mysterious structures can help students understand gravity and the dynamic nature of our universe, all while sharpening their math skills.

How They Did It

Though scientists had theorized they could image black holes by capturing their silhouettes against their glowing surroundings, the ability to image an object so distant still eluded them. A team formed to take on the challenge, creating a network of telescopes known as the Event Horizon Telescope, or the EHT. They set out to capture an image of a black hole by improving upon a technique that allows for the imaging of far-away objects, known as Very Long Baseline Interferometry, or VLBI.

Telescopes of all types are used to see distant objects. The larger the diameter, or aperture, of the telescope, the greater its ability to gather more light and the higher its resolution (or ability to image fine details). To see details in objects that are far away and appear small and dim from Earth, we need to gather as much light as possible with very high resolution, so we need to use a telescope with a large aperture.

That’s why the VLBI technique was essential to capturing the black hole image. VLBI works by creating an array of smaller telescopes that can be synchronized to focus on the same object at the same time and act as a giant virtual telescope. In some cases, the smaller telescopes are also an array of multiple telescopes. This technique has been used to track spacecraft and to image distant cosmic radio sources, such as quasars.

Making up one piece of the EHT array of telescopes, the Atacama Large Millimeter/submillimeter Array (ALMA) in Chile has 66 high-precision antennas. Image credit: NRAO/AUI/NSF | + Expand image

The aperture of a giant virtual telescope such as the Event Horizon Telescope is as large as the distance between the two farthest-apart telescope stations – for the EHT, those two stations are at the South Pole and in Spain, creating an aperture that’s nearly the same as the diameter of Earth. Each telescope in the array focuses on the target, in this case the black hole, and collects data from its location on Earth, providing a portion of the EHT’s full view. The more telescopes in the array that are widely spaced, the better the image resolution.

To test VLBI for imaging a black hole and a number of computer algorithms for sorting and synchronizing data, the Event Horizon Telescope team decided on two targets, each offering unique challenges.

The closest supermassive black hole to Earth, Sagittarius A*, interested the team because it is in our galactic backyard – at the center of our Milky Way galaxy, 26,000 light-years (156 quadrillion miles) away. (An asterisk is the astronomical standard for denoting a black hole.) Though not the only black hole in our galaxy, it is the black hole that appears largest from Earth. But its location in the same galaxy as Earth meant the team would have to look through “pollution” caused by stars and dust to image it, meaning there would be more data to filter out when processing the image. Nevertheless, because of the black hole’s local interest and relatively large size, the EHT team chose Sagittarius A* as one of its two targets.

A close-up image of the core of the M87 galaxy, imaged by the Chandra X-ray Observatory. Image credit: NASA/CXC/Villanova University/J. Neilsen | + Expand image

This image from NASA's Hubble Space Telescope shows a jet of subatomic particles streaming from the center of M87*. Image credits: NASA and the Hubble Heritage Team (STScI/AURA) | + Expand image

The second target was the supermassive black hole M87*. One of the largest known supermassive black holes, M87* is located at the center of the gargantuan elliptical galaxy Messier 87, or M87, 53 million light-years (318 quintillion miles) away. Substantially more massive than Sagittarius A*, which contains 4 million solar masses, M87* contains 6.5 billion solar masses. One solar mass is equivalent to the mass of our Sun, approximately 2x10^30 kilograms. In addition to its size, M87* interested scientists because, unlike Sagittarius A*, it is an active black hole, with matter falling into it and spewing out in the form of jets of particles that are accelerated to velocities near the speed of light. But its distance made it even more of a challenge to capture than the relatively local Sagittarius A*. As described by Katie Bouman, a computer scientist with the EHT who led development of one of the algorithms used to sort telescope data during the processing of the historic image, it’s akin to capturing an image of an orange on the surface of the Moon.

By 2017, the EHT was a collaboration of eight sites around the world – and more have been added since then. Before the team could begin collecting data, they had to find a time when the weather was likely to be conducive to telescope viewing at every location. For M87*, the team tried for good weather in April 2017 and, of the 10 days chosen for observation, a whopping four days were clear at all eight sites!

Each telescope used for the EHT had to be highly synchronized with the others to within a fraction of a millimeter using an atomic clock locked onto a GPS time standard. This degree of precision makes the EHT capable of resolving objects about 4,000 times better than the Hubble Space Telescope. As each telescope acquired data from the target black hole, the digitized data and time stamp were recorded on computer disk media. Gathering data for four days around the world gave the team a substantial amount of data to process. The recorded media were then physically transported to a central location because the amount of data, around 5 petabytes, exceeds what the current internet speeds can handle. At this central location, data from all eight sites were synchronized using the time stamps and combined to create a composite set of images, revealing the never-before-seen silhouette of M87*’s event horizon. The team is also working on generating an image of Sagittarius A* from additional observations made by the EHT.

As more telescopes are added and the rotation of Earth is factored in, more of the image can be resolved, and we can expect future images to be higher resolution. But we might never have a complete picture, as Katie Bouman explains here (under “Imaging a Black Hole”).

To complement the EHT findings, several NASA spacecraft were part of a large effort to observe the black hole using different wavelengths of light. As part of this effort, NASA’s Chandra X-ray Observatory, Nuclear Spectroscopic Telescope Array (NuSTAR) and Neil Gehrels Swift Observatory space telescope missions – all designed to detect different varieties of X-ray light – turned their gaze to the M87 black hole around the same time as the EHT in April 2017. NASA’s Fermi Gamma-ray Space Telescope was also watching for changes in gamma-ray light from M87* during the EHT observations. If the EHT observed changes in the structure of the black hole’s environment, data from these missions and other telescopes could be used to help figure out what was going on.

Though NASA observations did not directly trace out the historic image, astronomers used data from Chandra and NuSTAR satellites to measure the X-ray brightness of M87*’s jet. Scientists used this information to compare their models of the jet and disk around the black hole with the EHT observations. Other insights may come as researchers continue to pore over these data.

Why It's Important

Learning about mysterious structures in the universe provides insight into physics and allows us to test observation methods and theories, such as Einstein’s theory of general relativity. Massive objects deform spacetime in their vicinity, and although the theory of general relativity has directly been proven accurate for smaller-mass objects, such as Earth and the Sun, the theory has not yet been directly proven for black holes and other regions containing dense matter.

One of the main results of the EHT black hole imaging project is a more direct calculation of a black hole’s mass than ever before. Using the EHT, scientists were able to directly observe and measure the radius of M87*’s event horizon, or its Schwarzschild radius, and compute the black hole’s mass. That estimate was close to the one derived from a method that uses the motion of orbiting stars – thus validating it as a method of mass estimation.

The size and shape of a black hole, which depend on its mass and spin, can be predicted from general relativity equations. General relativity predicts that this silhouette would be roughly circular, but other theories of gravity predict slightly different shapes. The image of M87* shows a circular silhouette, thus lending credibility to Einstein’s theory of general relativity near black holes.

This artist’s impression depicts a rapidly spinning supermassive black hole surrounded by an accretion disc. Image credit: ESO | + Expand image

The data also offer some insight into the formation and behavior of black hole structures, such as the accretion disk that feeds matter into the black hole and plasma jets that emanate from its center. Scientists have hypothesized about how an accretion disk forms, but they’ve never been able to test their theories with direct observation until now. Scientists are also curious about the mechanism by which some supermassive black holes emit enormous jets of particles traveling at near light-speed.

These questions and others will be answered as more data is acquired by the EHT and synthesized in computer algorithms. Be sure to stay tuned for that and the next expected image of a black hole – our Milky Way’s own Sagittarius A*.

Update: May 12, 2022 – Scientists have released the first image of Sagittarius A* captured by the Event Horizon Telescope. › Read more from Teachable Moments

Teach It

Capture your students’ enthusiasm about black holes by challenging them to solve these standards-aligned math problems.

Model black-hole interaction with this NGSS-aligned lesson:

•
  Dropping In With Gravitational Waves

  Students develop a model to represent gravitational waves and their propagation through spacetime.

  Grades 6-8

  Time 30 mins - 1 hr

Explore More

•
  Video: What Is a Black Hole?

  Find out how what a black hole is, how they can form and why they are so cool!

•
  Black Holes: By the Numbers

  What are black holes and how do they form?

•
  How Do We See Dark Matter?

  Students will make observations of two containers and identify differences in content, justify their claims and make comparisons to dark matter observations.

  Grades 6-12

  Time < 30 mins

•
  Teachable Moment: Modeling Gravitational Waves

  Find out how researchers proved part of Albert Einstein’s Theory of General Relativity, then create a model of the Nobel Prize-winning experiment in the classroom.

• JPL News: Black Hole Image Makes History
• Graphic: Anatomy of a Black Hole

Check out these related resources for students from NASA’s Space Place

• What is a Black Hole?
• Game: Black Hole Rescue!

TAGS: Black Hole, Teachable Moments, Science, K-12 Education, Teachers, Educators, Universe

•

  ABOUT THE AUTHOR

  Ota Lutz, K-12 Education Group Manager, NASA-JPL Education Office

  Ota Lutz is the manager of the K-12 Education Group at NASA’s Jet Propulsion Laboratory. When she’s not writing new lessons or teaching, she’s probably cooking something delicious, volunteering in the community, or dreaming about where she will travel next.

How They Did It

Launched in 2003 and landed in early 2004, the twin Mars Exploration Rovers, Spirit and Opportunity, were the second spacecraft of their kind to land on our neighboring planet.

Teach It

Explore standards-aligned lessons that bring Mars Exploration Rover science and engineering to students.

Preceded by the small Sojourner rover in 1997, Spirit and Opportunity were substantially larger, weighing about 400 pounds, or 185 kilograms, on Earth (150 pounds, or 70 kilograms, on Mars) and standing about 5 feet tall. The solar-powered rovers were designed for a mission lasting 90 sols, or Mars days, during which they would look for evidence of water on the seemingly barren planet.

Dust in the Wind

Scientists and engineers always hope a spacecraft will outlive its designed lifetime, and the Mars Exploration Rovers did not disappoint. Engineers at NASA’s Jet Propulsion Laboratory in Pasadena, California, expected the lifetime of these sun-powered robots to be limited by dust accumulating on the rovers’ solar panels. As expected, power input to the rovers slowly decreased as dust settled on the panels and blocked some of the incoming sunlight. However, the panels were “cleaned” accidentally when seasonal winds blew off the dust. Several times during the mission, power levels were restored to pre-dusty conditions. Because of these events, the rovers were able to continue their exploration much longer than expected with enough power to continue running all of their instruments.

A self-portrait of NASA's Mars Exploration Rover Opportunity taken in late March 2014 (right) shows that much of the dust on the rover's solar arrays was removed since a similar portrait from January 2014 (left). Image Credit: NASA/JPL-Caltech/Cornell Univ./Arizona State Univ. | › Full image and caption

Terrestrial Twin

To troubleshoot and overcome challenges during the rovers’ long mission, engineers would perform tests on a duplicate model of the spacecraft, which remained on Earth for just this purpose. One such instance was in 2005, when Opportunity got stuck in the sand. Its right front wheel dug into loose sand, reaching to just below its axle. Engineers and scientists worked for five weeks to free Opportunity, first using images and spectroscopy obtained by the rover’s instruments to recreate the sand trap on Earth and then placing the test rover in the exact same position as Opportunity. The team eventually found a way to get the test rover out of the sand trap. Engineers tested their commands repeatedly with consistent results, giving them confidence in their solution. The same commands were relayed to Opportunity through NASA’s Deep Space Network, and the patient rover turned its stuck wheel just the right amount and backed out of the trap that had ensnared it for over a month, enabling the mission to continue.

Inside the In-Situ Instrument Laboratory at JPL, rover engineers check how a test rover moves in material chosen to simulate some difficult Mars driving conditions. | › Full image and caption

A few years later, in 2009, Spirit wasn’t as lucky. Having already sustained some wheel problems, Spirit got stuck on a slope in a position that would not be favorable for the Martian winter. Engineers were not able to free Spirit before winter took hold, denying the rover adequate sunlight for power. Its mission officially ended in 2011. Meanwhile, despite a troubled shoulder joint on its robotic arm that first started showing wear in 2006, Opportunity continued exploring the Red Planet. It wasn’t until a dust storm completely enveloped Mars in the summer of 2018 that Opportunity finally succumbed to the elements.

The Final Act

This set of images from NASA’s Mars Reconnaissance Orbiter (MRO) shows a giant dust storm building up on Mars in 2018, with rovers on the surface indicated as icons. Image credit: NASA/JPL-Caltech/MSSS | › Full image and caption

This series of images shows simulated views of a darkening Martian sky blotting out the Sun from NASA’s Opportunity rover’s point of view in the 2018 global dust storm. Each frame corresponds to a tau value, or measure of opacity: 1, 3, 5, 7, 9, 11. Image credit: NASA/JPL-Caltech/TAMU | › Full image and caption

Dust storm season on Mars can be treacherous for solar-powered rovers because if they are in the path of the dust storm, their access to sunlight can be obstructed for months on end, longer than their batteries can sustain them. Though several dust storms occurred on Mars during the reign of the Mars Exploration Rovers, 2018 brought a large, thick dust storm that covered the entire globe and shrouded Opportunity’s access to sunlight for four months. Only the caldera of Olympus Mons, the largest known volcano in the solar system, peeked out above the dust.

The transparency or “thickness” of the dust in Mars’ atmosphere is denoted by the Greek letter tau. The higher the tau, the less sunlight is available to charge a surface spacecraft’s batteries. An average tau for Opportunity’s location is 0.5. The tau at the peak of the 2018 dust storm was 10.8. This thick dust was imaged and measured by the Curiosity Mars rover on the opposite side of the planet. (Curiosity is powered by a radioisotope thermoelectric generator.)

Since the last communication with Opportunity on June 10, 2018, NASA has sent more than 1,000 commands to the rover that have gone unanswered. Each of these commands was an attempt to get Opportunity to send back a signal saying it was alive. A last-ditch effort to reset the rover’s mission clock was met with silence.

Why It’s Important

The Mars Exploration Rovers were designed to give a human-height perspective of Mars, using panoramic cameras approximately 5 feet off the surface, while their science instruments investigated Mars’ surface geology for signs of water. Spirit and Opportunity returned more than 340,000 raw images conveying the beauty of Mars and leading to scientific discoveries. The rovers brought Mars into classrooms and living rooms around the world. From curious geologic formations to dune fields, dust devils and even their own tracks on the surface of the Red Planet, the rovers showed us Mars in a way we had never seen it before.

This mosaic shows an area of disturbed soil made by the Spirit rover's stuck right front wheel. The trench exposed a patch of nearly pure silica, with the composition of opal. Image credit: NASA/JPL-Caltech/Cornell | › Full image and caption

This color view of a mineral vein was taken by the Mars rover Opportunity on Nov. 7, 2011. Image credit: NASA/JPL-Caltech/Cornell/ASU | › Full image and caption

The rovers discovered that Mars was once a warmer, wetter world than it is today and was potentially able to support microbial life. Opportunity landed in a crater and almost immediately discovered deposits of hematite, which is a mineral known to typically form in the presence of water. During its travels across the Mars surface, Spirit found rocks rich in magnesium and iron carbonates that likely formed when Mars was warm and wet, and sustained a near-neutral pH environment hospitable to life. At one point, while dragging its malfunctioning wheel, Spirit excavated 90 percent pure silica lurking just below the sandy surface. On Earth, this sort of silica usually exists in hot springs or hot steam vents, where life as we know it often finds a happy home. Later in its mission, near the rim of Endeavor crater, Opportunity found bright-colored veins of gypsum in the rocks. These veins likely formed when water flowed through underground fractures in the rocks, leaving calcium behind. All of these discoveries lead scientists to believe that Mars was once more hospitable to life than it is today, and they laid the groundwork for future exploration.

Imagery from the Mars Reconnaissance Orbiter and Mars Odyssey, both orbiting the Red Planet, has been combined with surface views and data from the Mars Exploration Rovers for an unprecedented understanding of the planet’s geology and environment.

Not only did Spirit and Opportunity add to our understanding of Mars, but also the rovers set the stage for future exploration. Following in their tracks, the Curiosity rover landed in 2012 and is still active, investigating the planet’s surface chemistry and geology, and confirming the presence of past water. Launching in 2020 is the next Mars rover, currently named Mars 2020. Mars 2020 will be able to analyze soil samples for signs of past microbial life. It will carry a drill that can collect samples of interesting rocks and soils, and set them aside in a cache on the surface of Mars. In the future, those samples could be retrieved and returned to Earth by another mission. Mars 2020 will also do preliminary research for future human missions to the Red Planet, including testing a method of producing oxygen from Mars’ atmosphere.

It’s thanks to three generations of surface-exploring rovers coupled with the knowledge obtained by orbiters and stationary landers that we have a deeper understanding of the Red Planet’s geologic history and can continue to explore Mars in new and exciting ways.

Teach It

Use these standards-aligned lessons and related activities to get students doing engineering, troubleshooting and scientific discovery just like NASA scientists and engineers!

•
  Mars in a Minute

  These 60-second videos answer some of the most frequently asked questions about our planetary neighbor, Mars, and the spacecraft that explore it.

  Grades K-12

  Time 1 min

•
  Robotic Arm Challenge

  In this challenge, students will use a model robotic arm to move items from one location to another. They will engage in the engineering design process to design, build and operate the arm.

  Grades K-8

  Time 30 mins - 1 hr

•
  Planetary Poetry

  In this cross-curricular STEM and language arts lesson, students learn about planets, stars and space missions and write STEM-inspired poetry to share their knowledge of or inspiration about these topics.

  Grades 2-12

  Time 1-2 hrs

•
  Exploring the Colors of Mars

  Students use satellite and rover images to learn about the various features and materials that cause color variation on the surface of Mars, then create their own “Marscape.”

  Grades 2-5

  Time 1-2 hrs

•
  Mission to Mars Unit

  In this standards-aligned unit, students learn about Mars, design a mission to explore the planet, build and test model spacecraft and components, and engage in scientific exploration.

  Grades 3-8

  Time Varies

•
  Planetary Pasta Rovers

  Using only pasta and glue, students design a rover that will travel down a one-meter ramp and then travel an additional one meter on a smooth, flat surface.

  Grades 3-8

  Time 1-2 hrs

•
  Explore Mars With Scratch

  Students learn about surface features on Mars, then use a visual programming language to create a Mars exploration game.

  Grades 3-8

  Time 1-2 hrs

•
  Mars Marathon: A 'Pi in the Sky' Math Challenge

  In this illustrated math problem, students use the mathematical constant pi to calculate how many times the Mars rover Opportunity's wheels rotated to get the rover to a marathon distance.

  Grades 4-6

  Time < 30 mins

•
  Looking for Life

  Using the fundamental criteria for life, students examine simulated extraterrestrial soil samples for signs of life.

  Grades 4-8

  Time 30 mins - 1 hr

•
  Design a Crew Exploration Vehicle

  Students will design, build and test a crew exploration vehicle, or CEV, to carry astronauts to Mars – meeting size, mass and payload requirements.

  Grades 6-8

  Time 1-2 hrs

•
  Robotics Lessons

  In these lessons, students program a rover to complete various challenges.

  Grades 6-9

  Time > 2 hrs

•
  Collecting Light: Inverse Square Law Demo

  In this activity, students learn how light and energy are spread throughout space. The rate of change can be expressed mathematically, demonstrating why spacecraft like NASA’s Juno need so many solar panels.

  Grades 6-12

  Time < 30 mins

•
  Where Do Spacecraft Get Their Power?

  This whiteboard video describes how "radioisotope power" allows many spacecraft, such as NASA's Curiosity rover on Mars, to stay powered while traveling through space and exploring other planets.

  Grades 7-12

  Time < 30 mins

Explore More

• NASA Mars Exploration Website: Mars Exploration Rovers
• Mission Highlights and Resources
• Send a Postcard to Opportunity
• Top Science Results
• Infographic: Off-World Driving Distances
• Infographic: Opportunity By the Numbers
• Iconic Images
• Living on Mars Time

Try these related resources for students from NASA’s Space Place

• The Mars Rovers: Spirit and Opportunity
• The Mars Rovers
• All About Mars

TAGS: K-12 Education, Teachers, Educators, Students, Opportunity, Mars rover, Rovers, Mars, Lessons, Activities, Missions

•

  ABOUT THE AUTHOR

  Ota Lutz, K-12 Education Group Manager, NASA-JPL Education Office

  Ota Lutz is the manager of the K-12 Education Group at NASA’s Jet Propulsion Laboratory. When she’s not writing new lessons or teaching, she’s probably cooking something delicious, volunteering in the community, or dreaming about where she will travel next.
