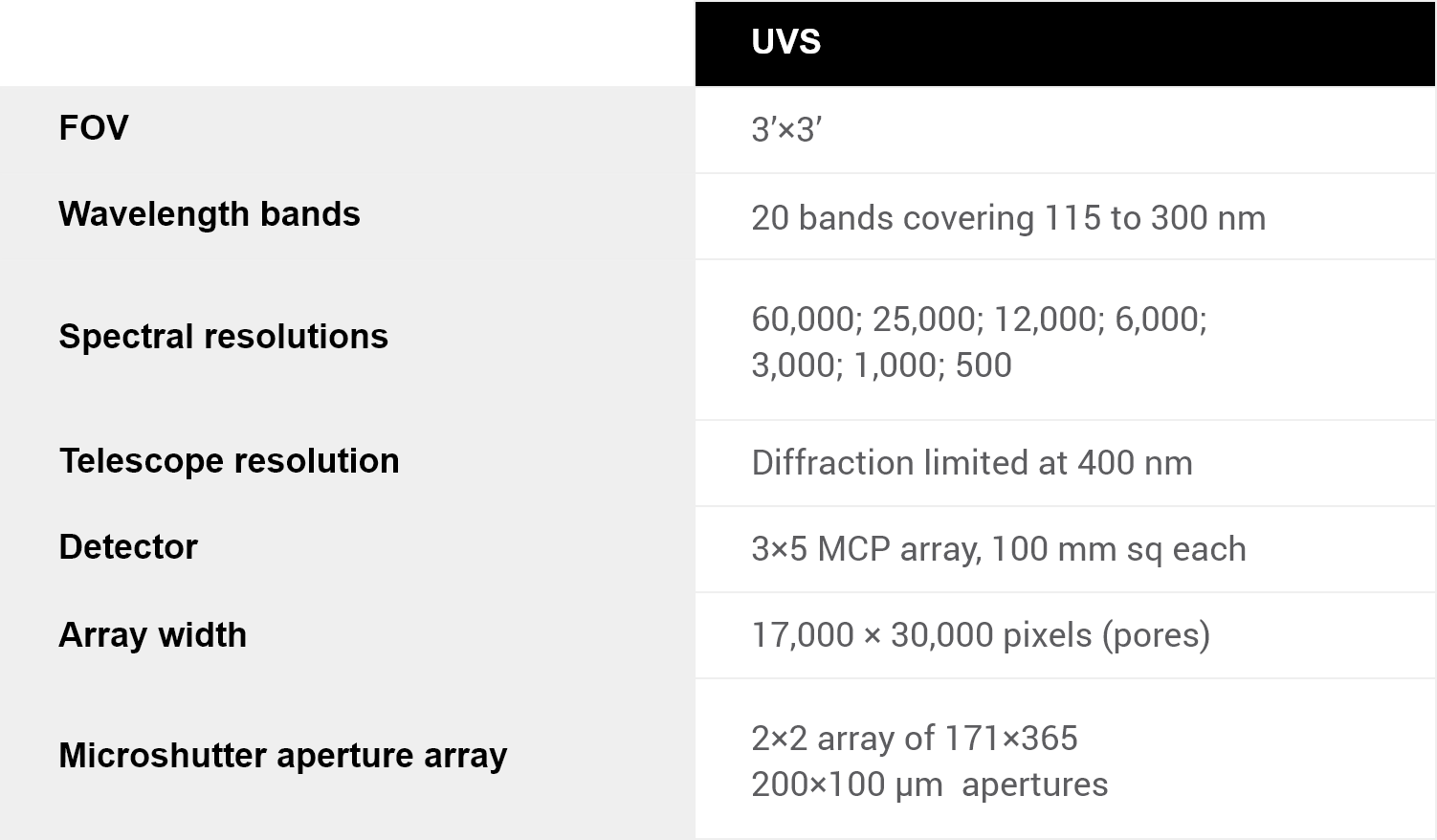

High resolution UV spectrograph (UVS) design specifications

Data graph

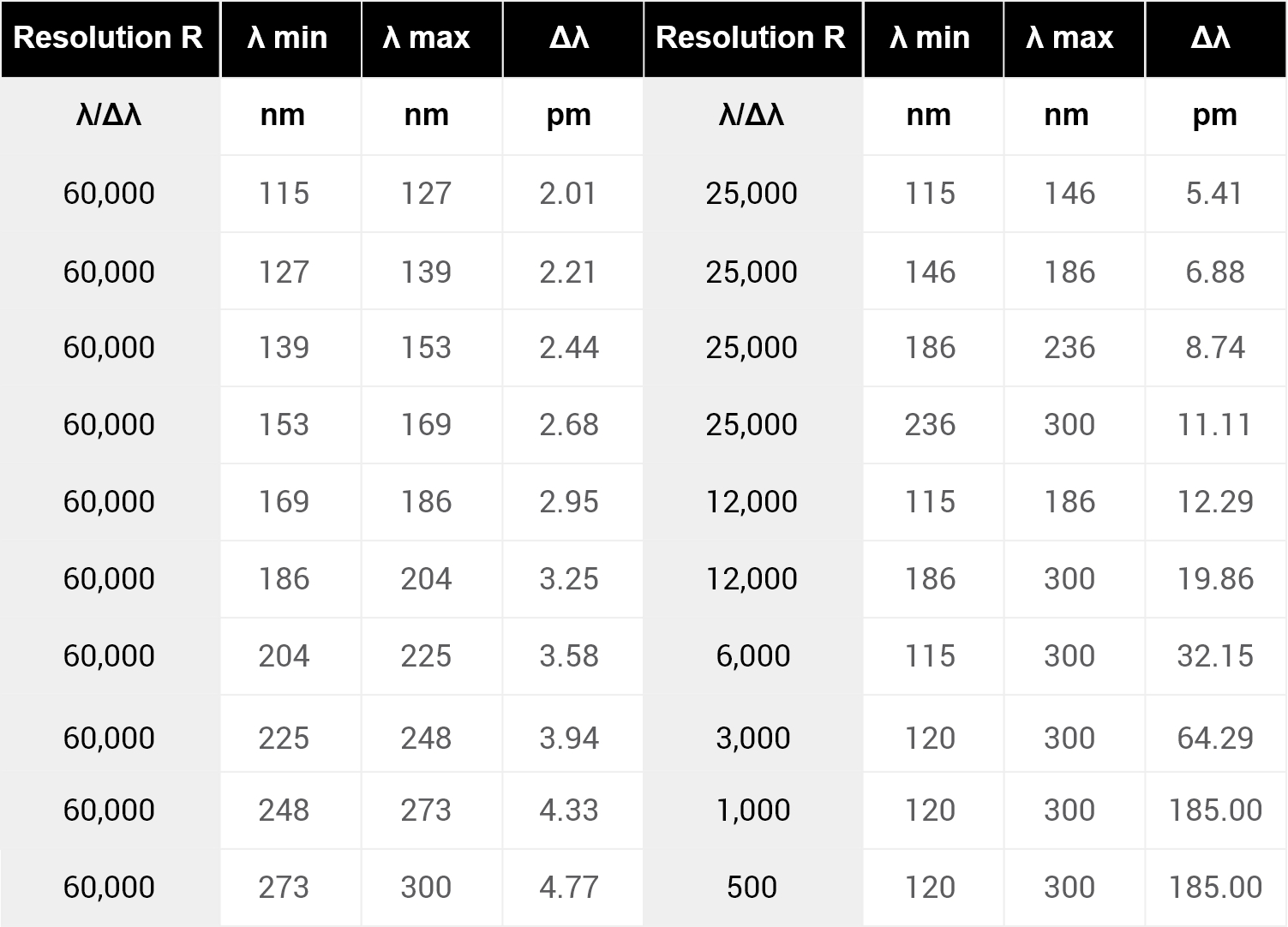

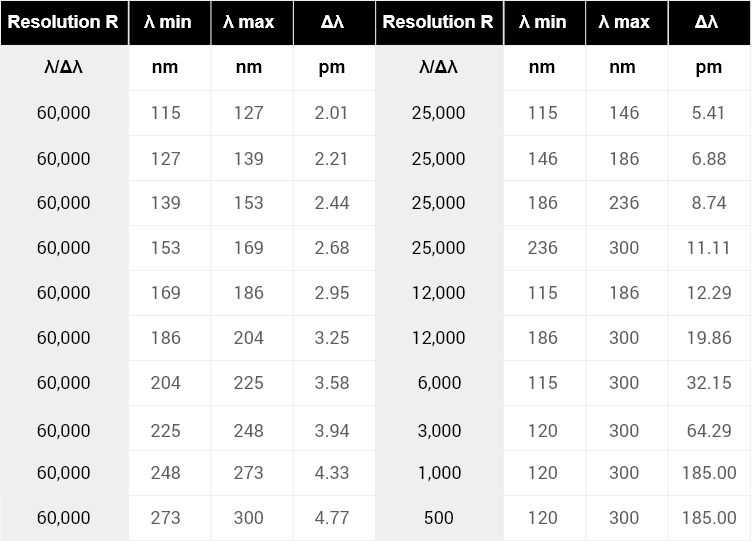

Spectral bands for UVS instrument

Note that for any given wavelength, seven different spectral resolutions are available, ranging from 500 to 60,000.

Data graph

Data graph

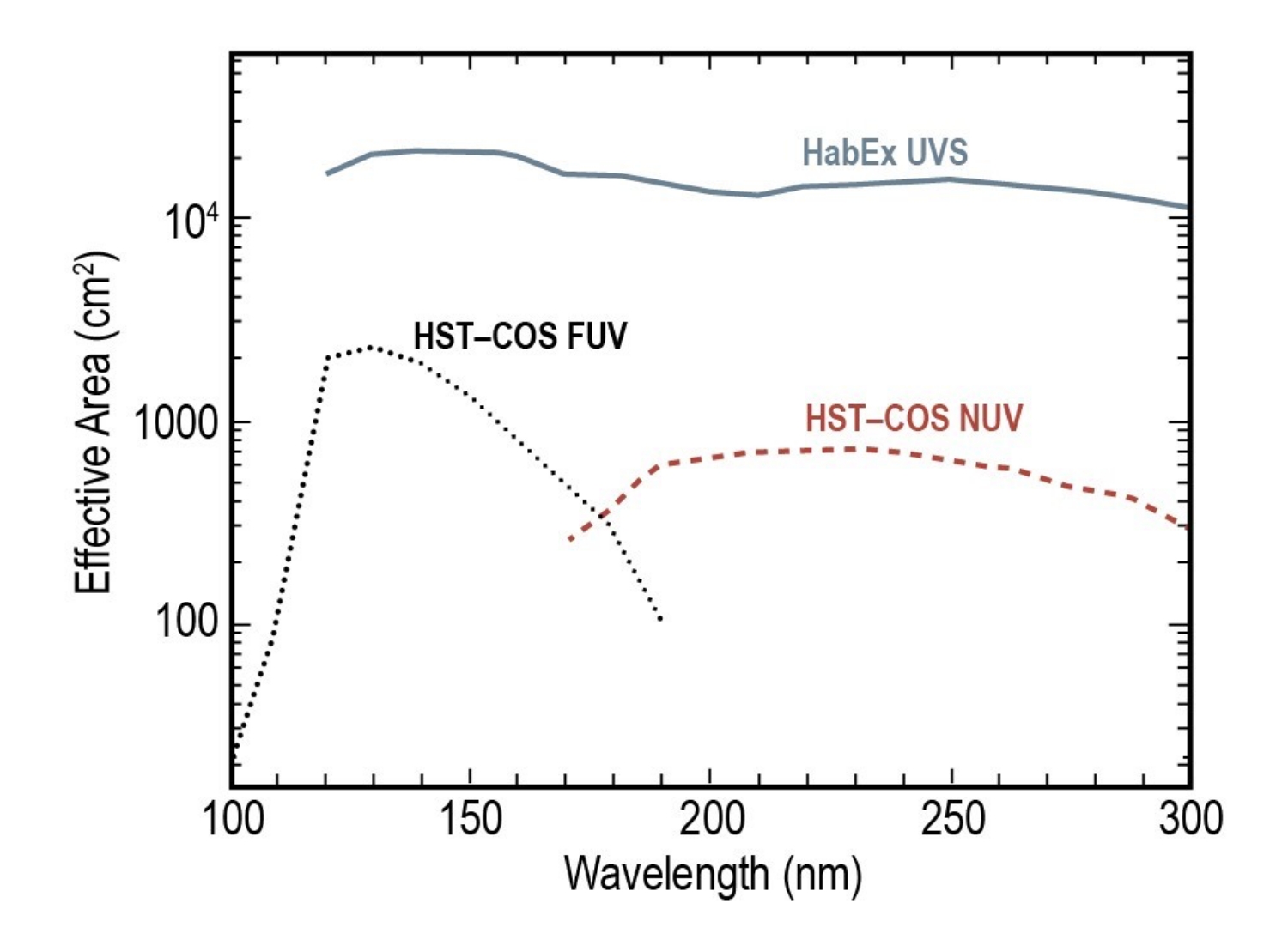

Fig 4: With more than ten times the effective area of HST-COS, combined with a microshutter array, the HabEx UVS provides several orders of magnitude improved efficiency for UV spectroscopic studies. This will enable the first multiplexed observations of multiple sightlines to a single galaxy.
